Getting Started

All the examples can be cloned from the below two github repositories

Note	Point to the latest framework( https://github.com/openanthem/nimbus-core/blob/2.0.x/pom.xml ) and check and update the nimbus-parent version in the pom.xml of the below examples

HelloWorld-and-Form-Elements-Code-Snippets:
1. https://github.com/Lavanya-anthem/HelloWorld-and-Form-Elements-Code-Snippets
2. In this repo, you have two branches: 'helloworld' & 'form-elements'
Drools-Actions-DB-examples:
1. https://github.com/Lavanya-anthem/Drools-Actions-DB-examples
2. In this repo, there are three branches: 'drools', 'fw-actions' & 'db-interaction'

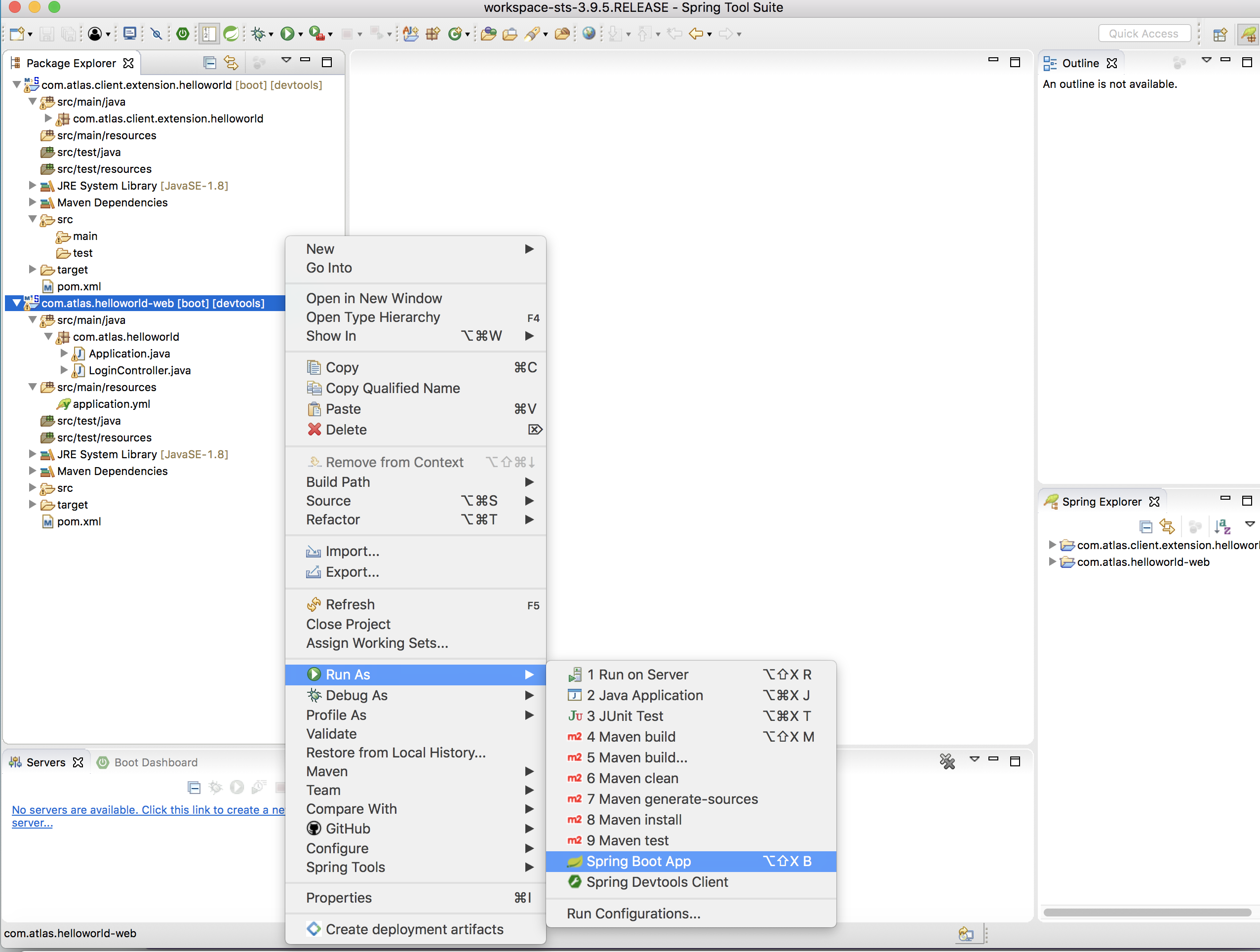

Import the projects in your STS. Right click the web folder and run as spring boot app

Hello World

Objective

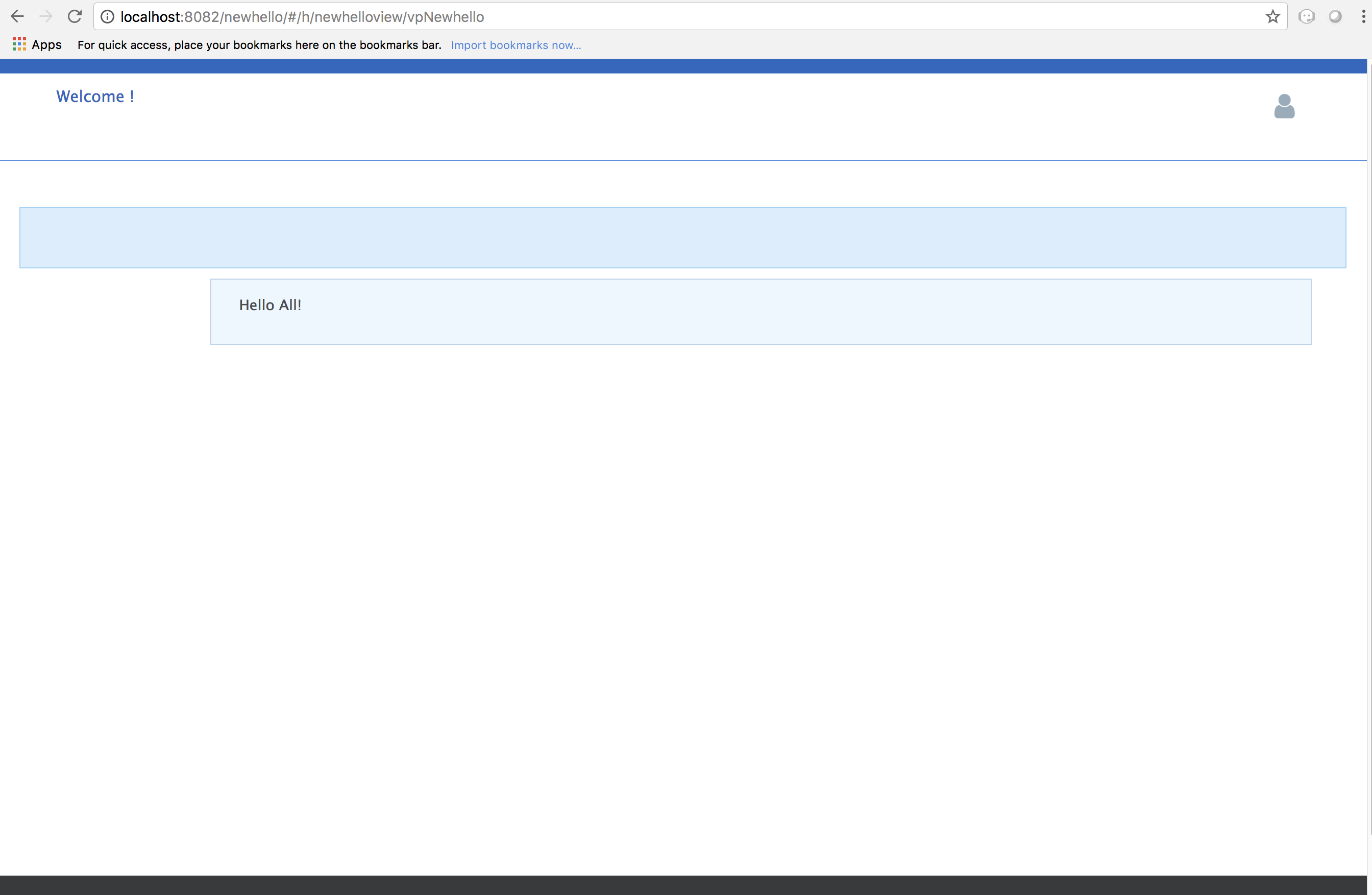

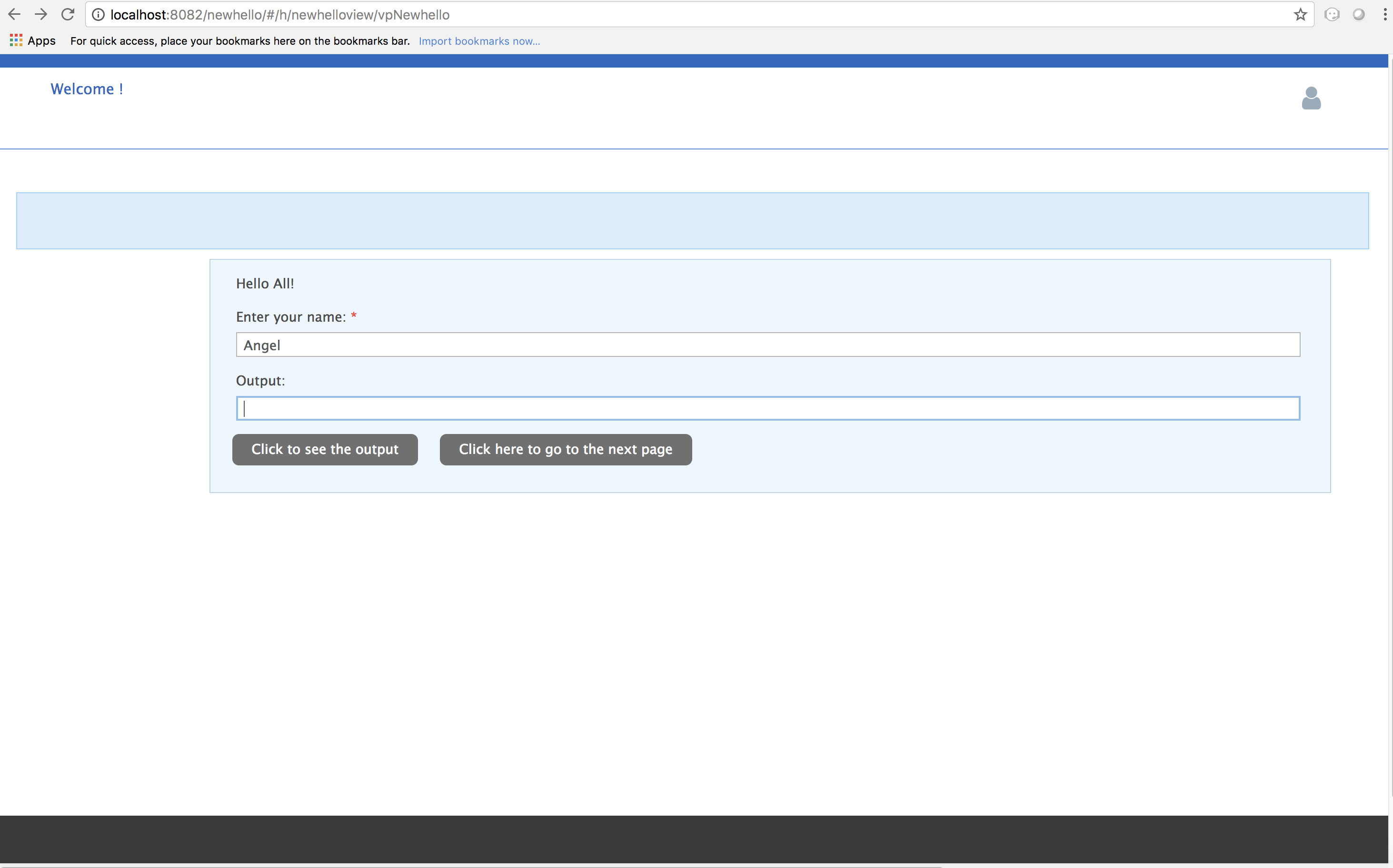

To create a simple page which displays “Hello World! We have created our first application!”

Steps

Open Spring Tool Suite.

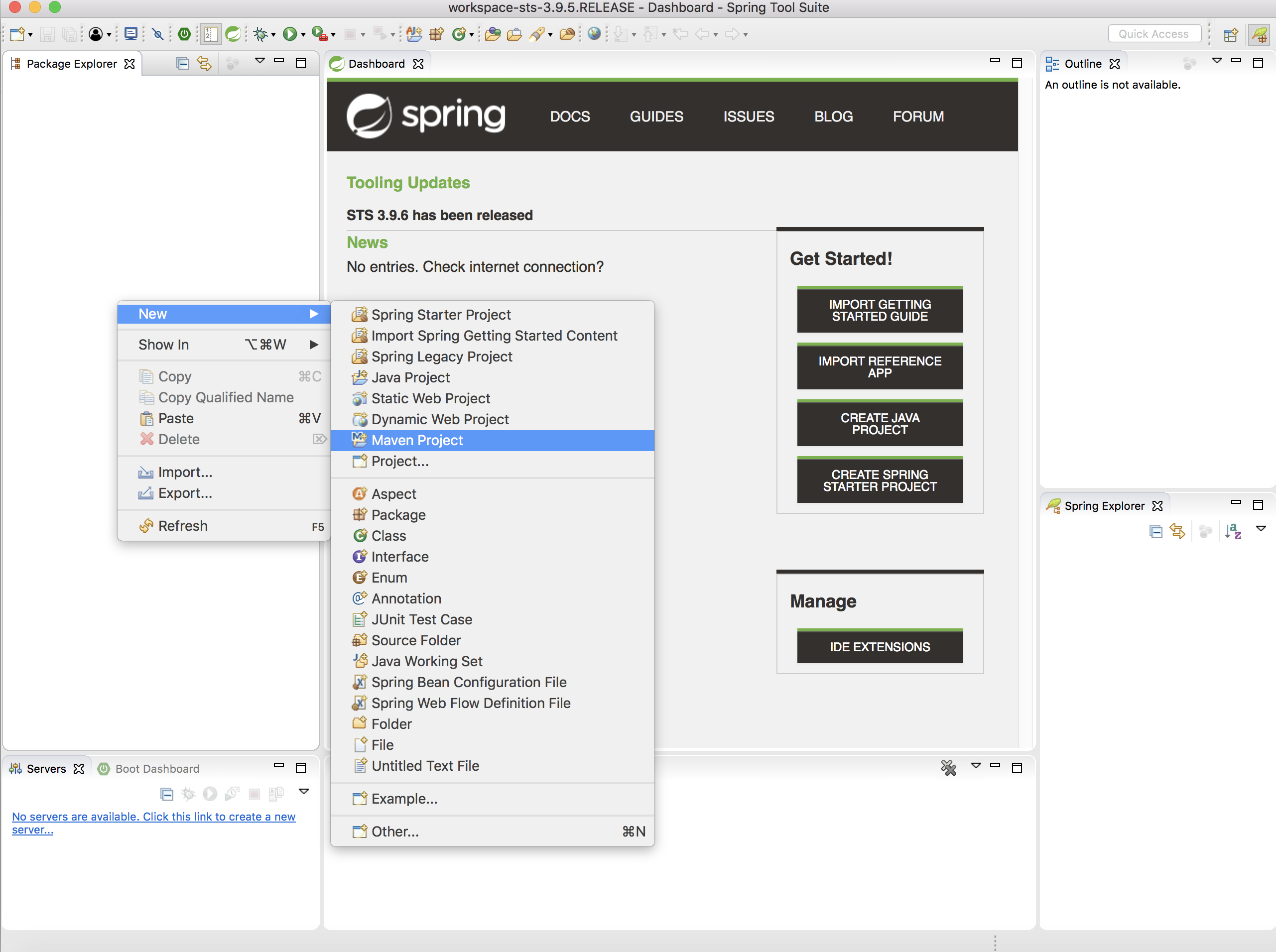

Right click the project explorer area and click New→Maven Project

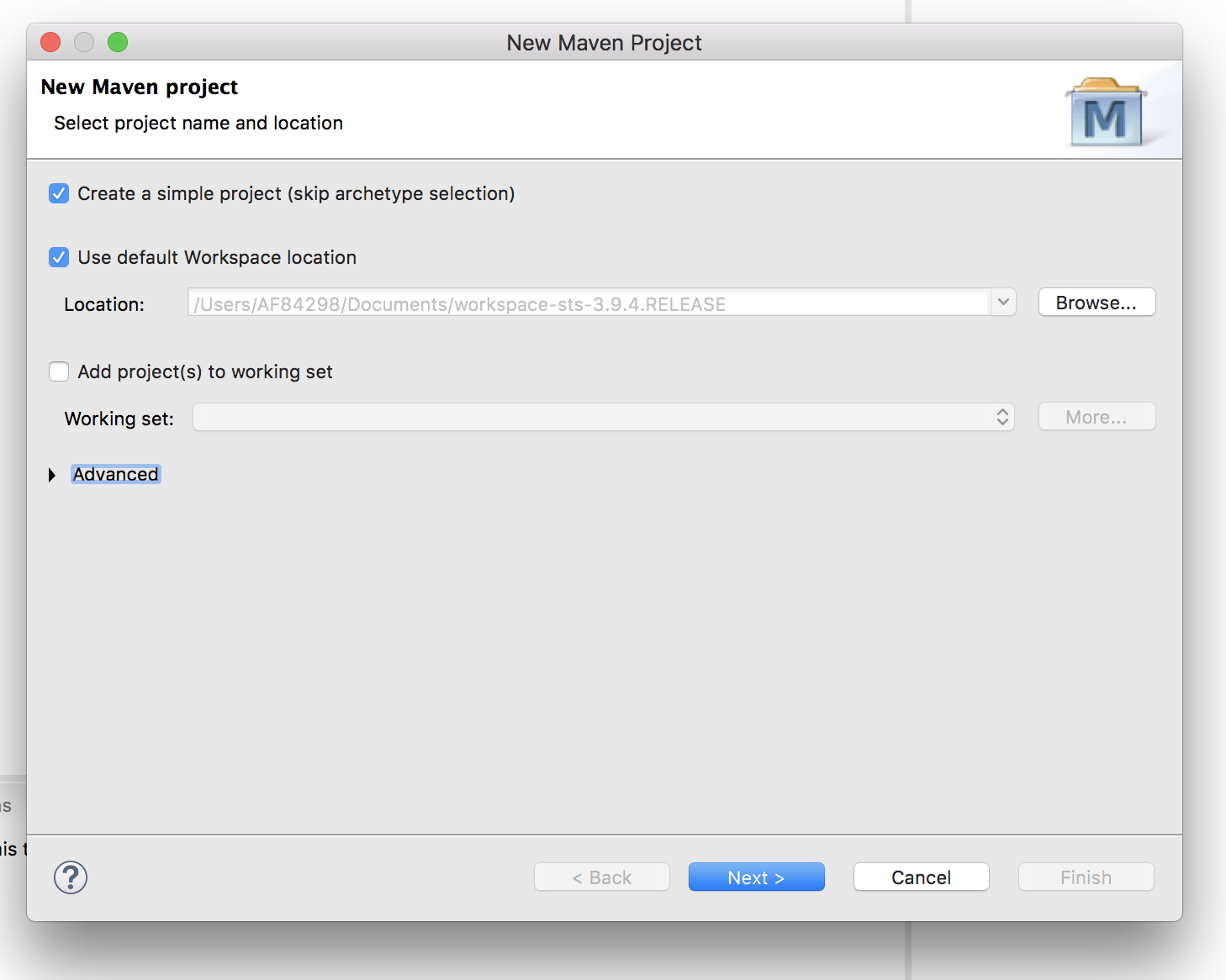

You can see your workspace location. Select Create simple project and click Next

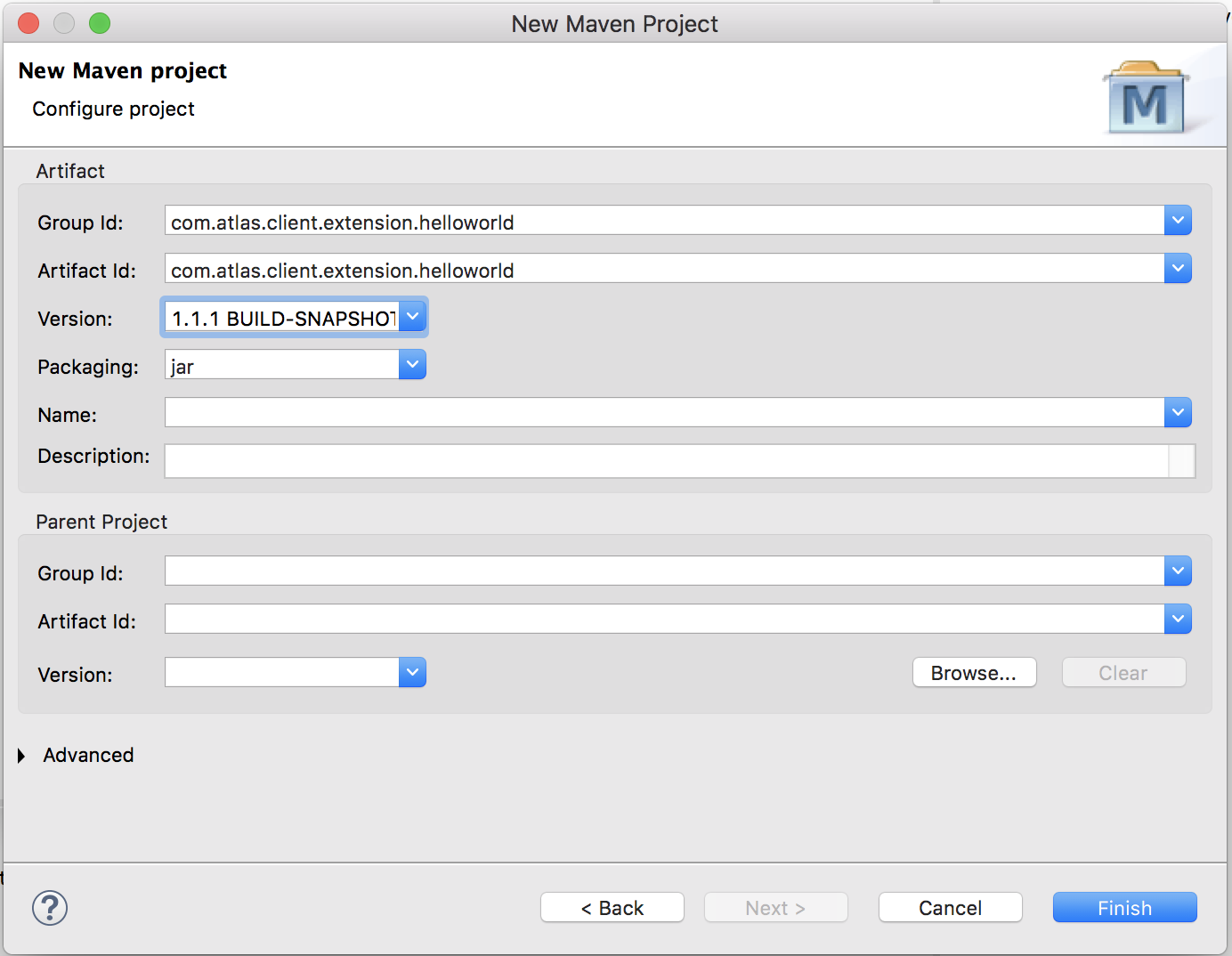

Enter the Group Id, Artifact Id and Version as follows:
1. Group Id: com.atlas.client.extension.helloworld
2. Artifact Id: com.atlas.client.extension.helloworld
3. Version: 1.1.1 BUILD-SNAPSHOT

  Note
  We follow a naming convention for project’s group id, artifact id and version. This goes like com.atlas.client.extension.(name of your project)
Click Finish

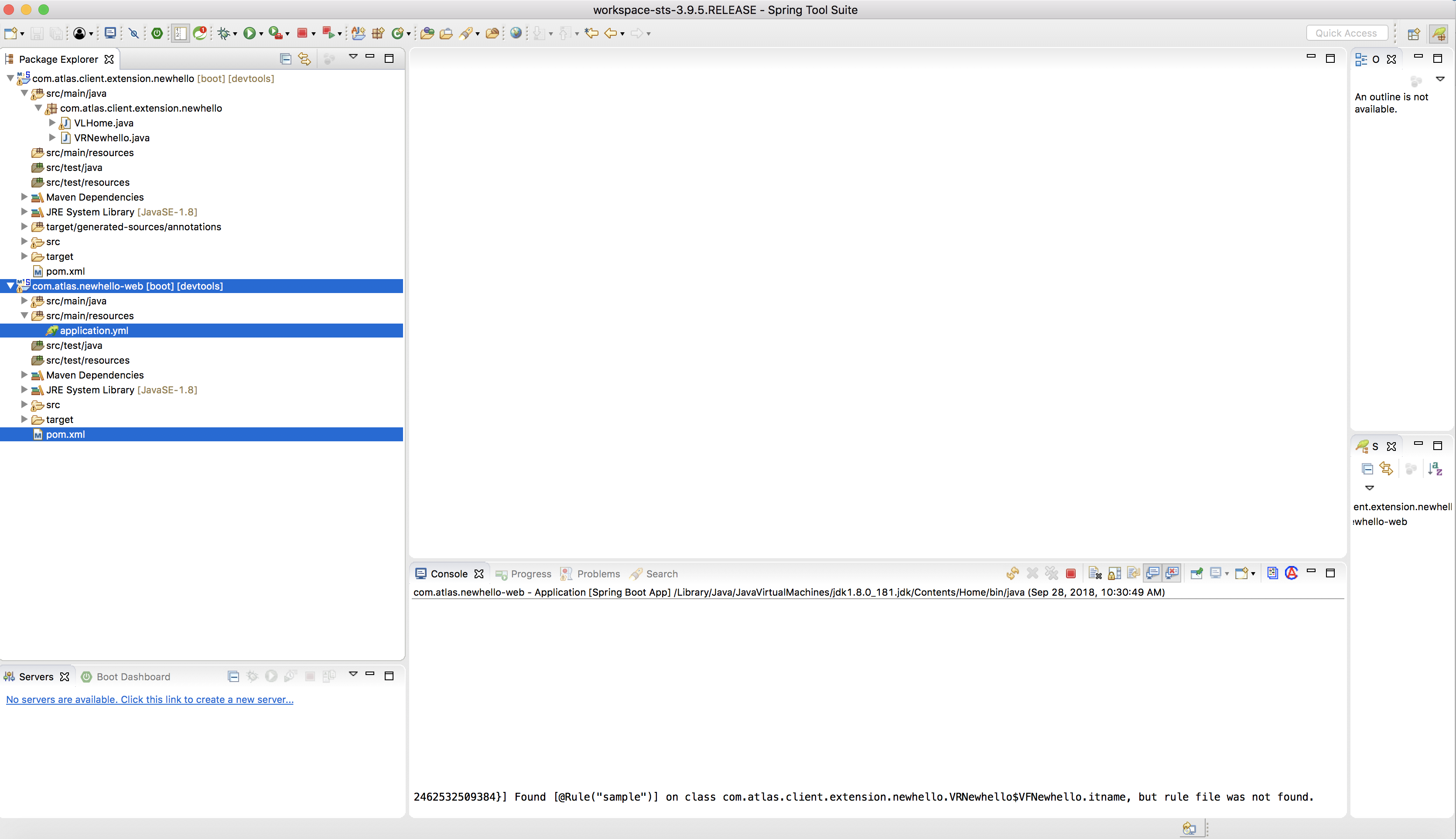

You can see the project in the Package Explorer area.

Update pom.xml

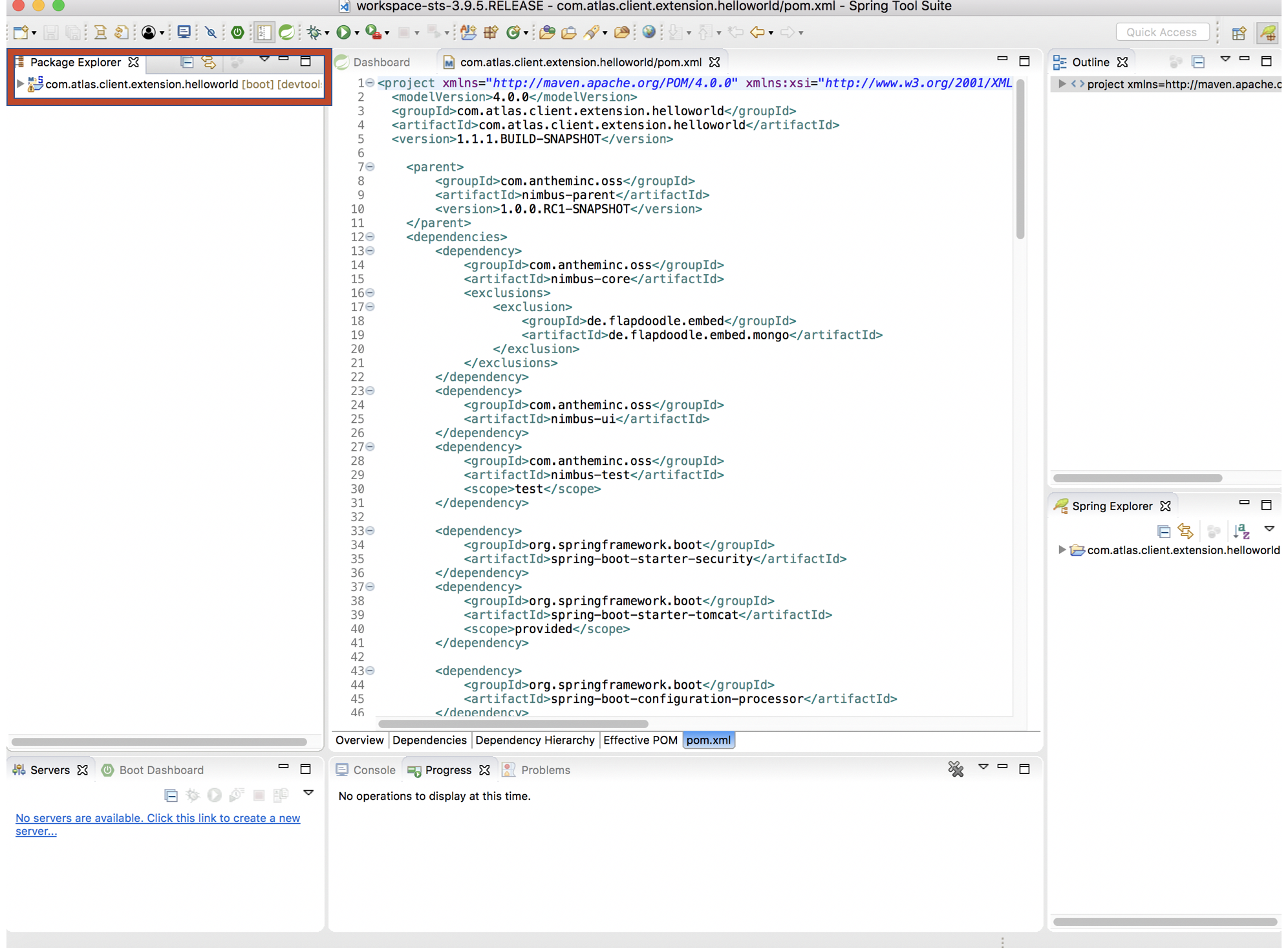

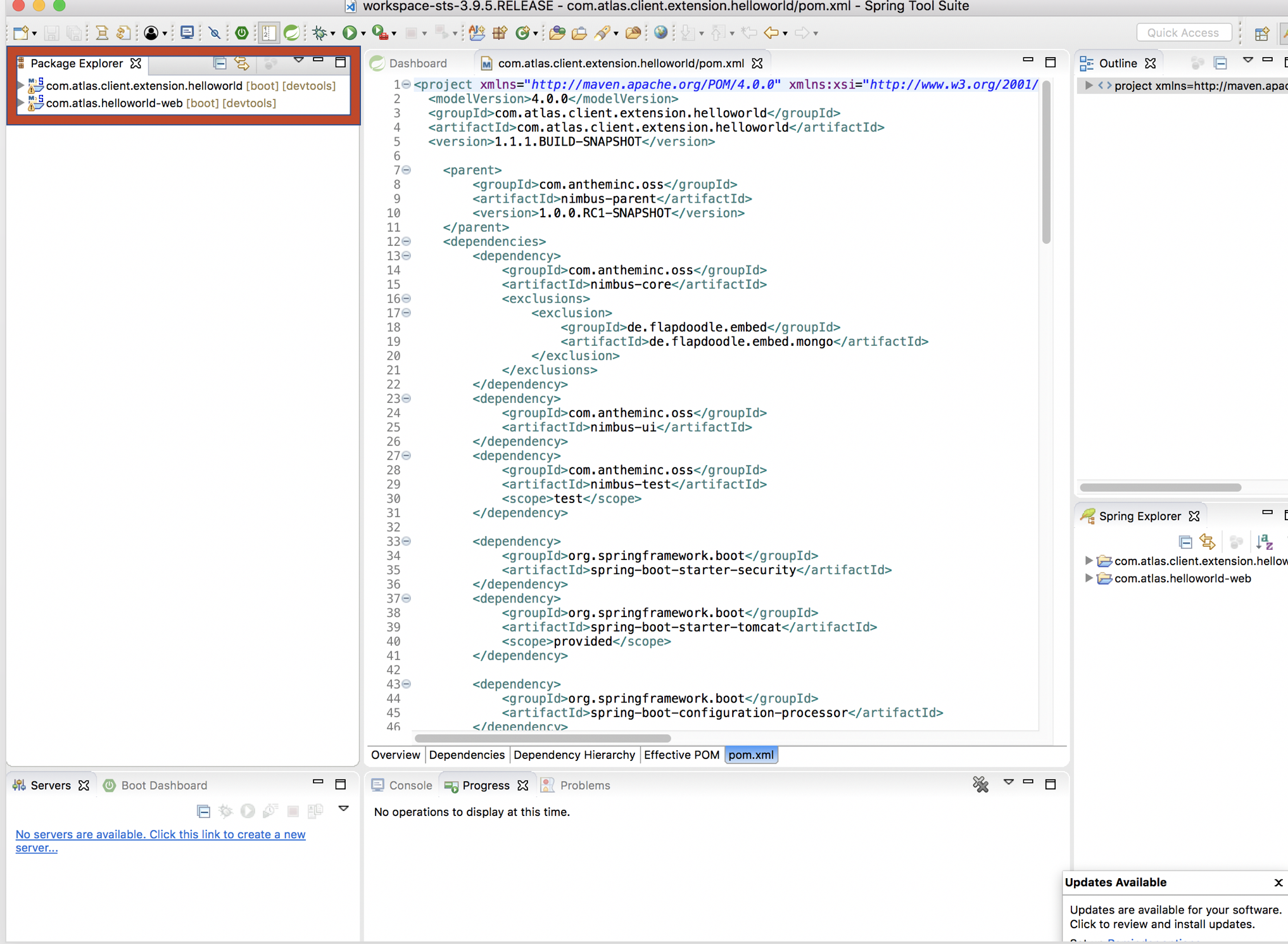

Expand the folder and open pom.xml (file which contains the project configuration details used by Maven)

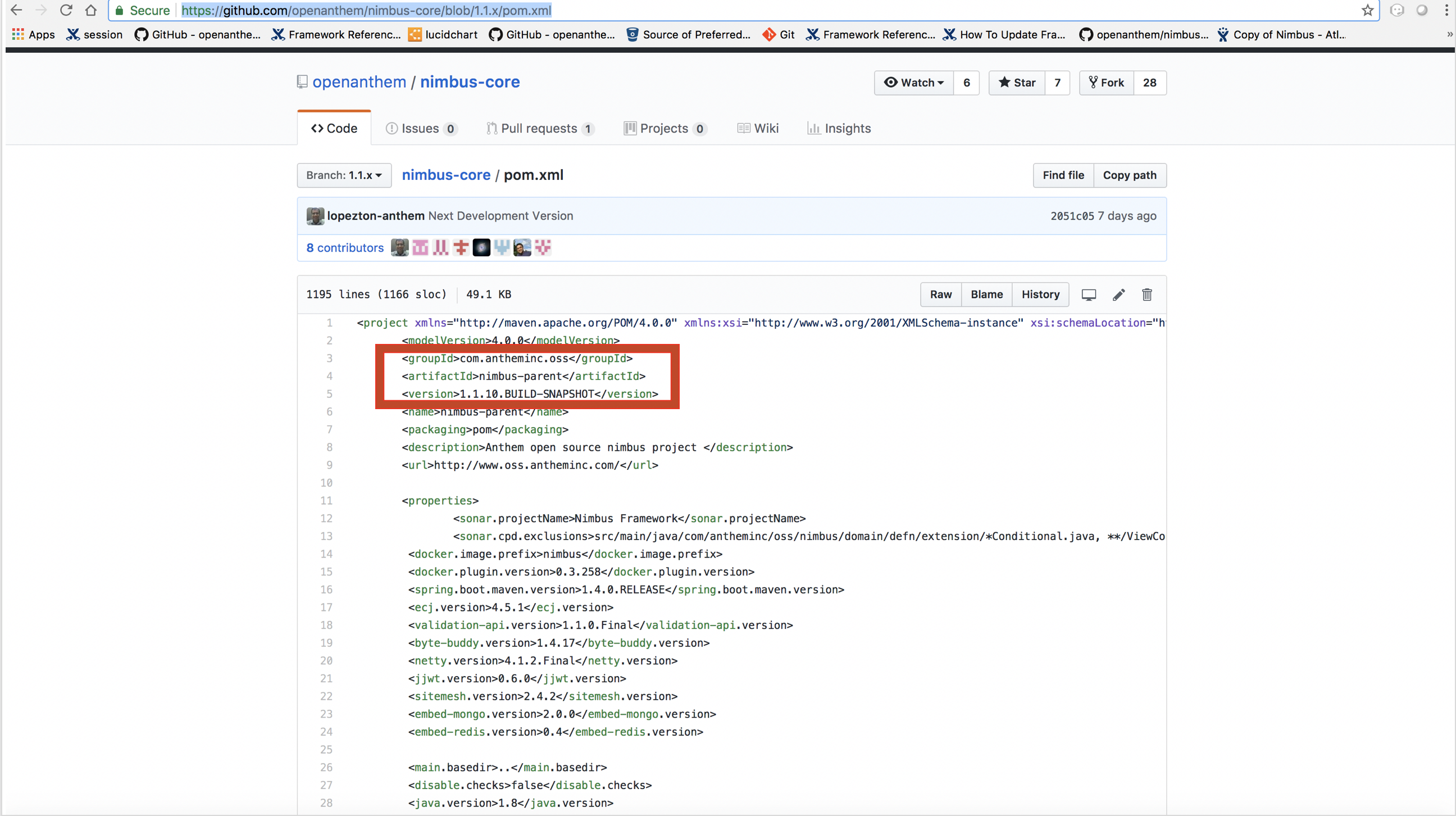

Add the parent class information. Here we have added the version of parent as 1.1.10.BUILD-SNAPSHOT. Check the version of the parent @ https://github.com/openanthem/nimbus-core/blob/1.1.x/pom.xml while upadting pom.xml
Add the project dependencies

Add the plugins requires to configure this project

POM.xml

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <groupId>com.atlas.client.extension.helloworld</groupId>
  <artifactId>com.atlas.client.extension.helloworld</artifactId>
  <version>1.1.1.BUILD-SNAPSHOT</version>

    <parent>
        <groupId>com.antheminc.oss</groupId>
        <artifactId>nimbus-parent</artifactId>
        <version>1.1.10.BUILD-SNAPSHOT</version>
        </parent>
    <dependencies>
        <dependency>
            <groupId>com.antheminc.oss</groupId>
            <artifactId>nimbus-core</artifactId>
            <exclusions>
                <exclusion>
                    <groupId>de.flapdoodle.embed</groupId>
                    <artifactId>de.flapdoodle.embed.mongo</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>com.antheminc.oss</groupId>
            <artifactId>nimbus-ui</artifactId>
        </dependency>
        <dependency>
            <groupId>com.antheminc.oss</groupId>
            <artifactId>nimbus-test</artifactId>
            <scope>test</scope>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-security</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-tomcat</artifactId>
            <scope>provided</scope>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-configuration-processor</artifactId>
        </dependency>
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.ws</groupId>
            <artifactId>spring-ws-core</artifactId>
            <exclusions>
                <exclusion>
                    <artifactId>commons-logging</artifactId>
                    <groupId>commons-logging</groupId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>com.querydsl</groupId>
            <artifactId>querydsl-mongodb</artifactId>
        </dependency>
        <dependency>
            <groupId>com.querydsl</groupId>
            <artifactId>querydsl-apt</artifactId>
        </dependency>
        <dependency>
            <groupId>com.sleepycat</groupId>
            <artifactId>je</artifactId>
            <version>5.0.73</version>
        </dependency>
        <!-- tomcat-embed-jasper is only to enable support to render JSP page -->
        <dependency>
            <groupId>org.apache.tomcat.embed</groupId>
            <artifactId>tomcat-embed-jasper</artifactId>
            <scope>provided</scope>
        </dependency>
        <dependency>
            <groupId>com.h2database</groupId>
            <artifactId>h2</artifactId>

        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-devtools</artifactId>
            <optional>true</optional>
            <scope>runtime</scope>
        </dependency>

        <dependency>
            <groupId>de.flapdoodle.embed</groupId>
            <artifactId>de.flapdoodle.embed.mongo</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>com.fasterxml.jackson.datatype</groupId>
            <artifactId>jackson-datatype-jsr310</artifactId>
        </dependency>
        <dependency>
            <groupId>org.apache.httpcomponents</groupId>
            <artifactId>httpclient</artifactId>
        </dependency>
    </dependencies>
  <build>
        <plugins>
            <plugin>
                <groupId>com.mysema.maven</groupId>
                <artifactId>apt-maven-plugin</artifactId>
                <version>1.1.3</version>
                <executions>
                    <execution>
                        <goals>
                            <goal>process</goal>
                        </goals>
                        <configuration>
                            <outputDirectory>${basedir}/target/generated-sources/annotations</outputDirectory>
                            <processor>
                                com.antheminc.oss.nimbus.domain.support.DomainQuerydslProcessor
                            </processor>
                        </configuration>
                    </execution>
                </executions>
            </plugin>
                    <plugin>
                <groupId>org.codehaus.mojo</groupId>
                <artifactId>build-helper-maven-plugin</artifactId>
                <executions>
                    <execution>
                        <id>add-extra-source</id>
                        <phase>generate-sources</phase>
                        <goals>
                            <goal>add-source</goal>
                        </goals>
                        <configuration>
                            <sources>
                                <source>${basedir}/target/generated-sources/annotations</source>
                            </sources>
                        </configuration>
                    </execution>
                </executions>
            </plugin>
        </plugins>
    </build>

    <repositories>
        <repository>
            <id>spring-snapshots</id>
            <name>Spring Snapshots</name>
            <url>https://repo.spring.io/snapshot</url>
            <snapshots>
                <enabled>true</enabled>
            </snapshots>
        </repository>
        <repository>
            <id>spring-milestones</id>
            <name>Spring Milestones</name>
            <url>https://repo.spring.io/milestone</url>
            <snapshots>
                <enabled>false</enabled>
            </snapshots>
        </repository>
    </repositories>

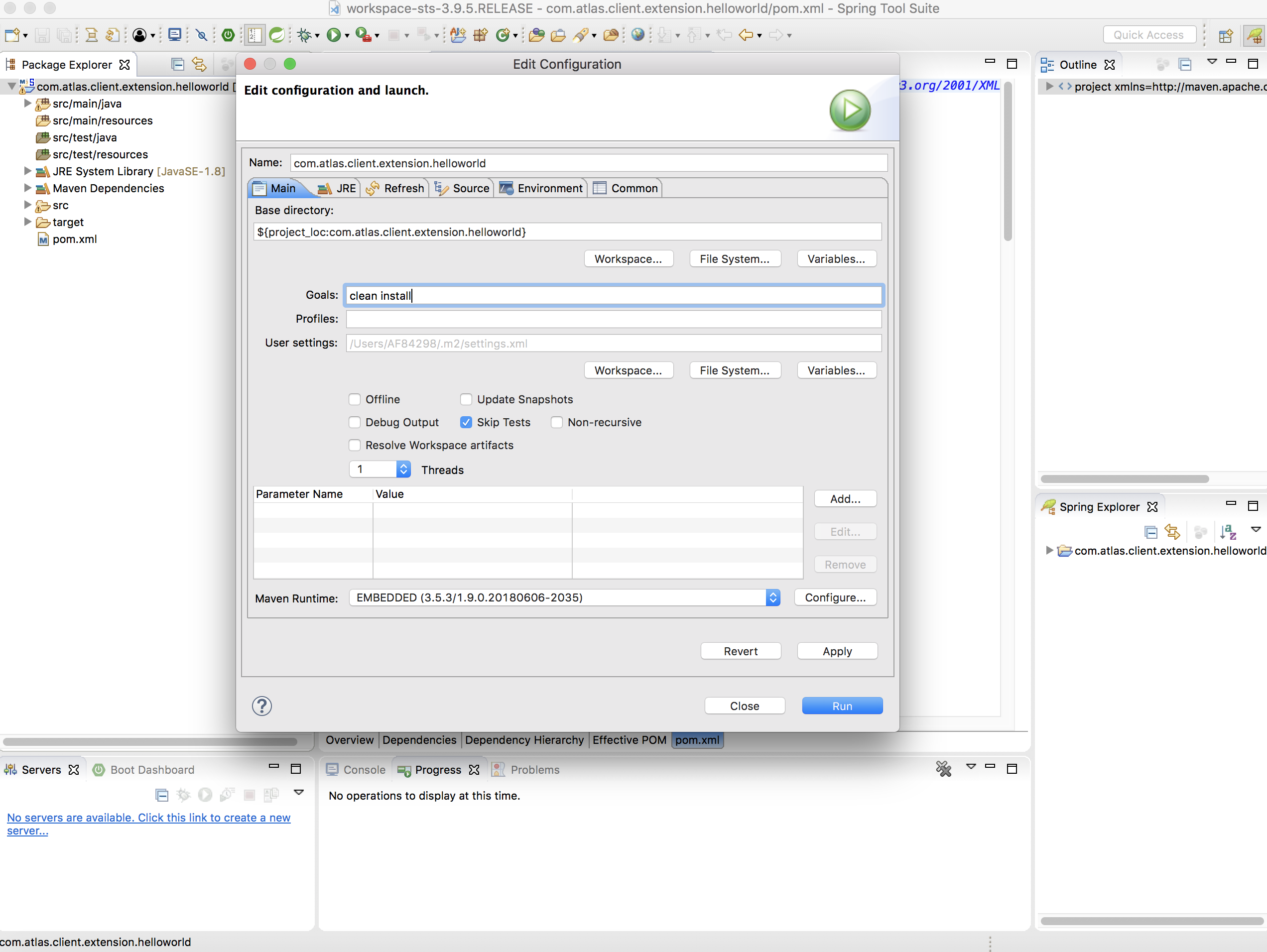

Build the project:

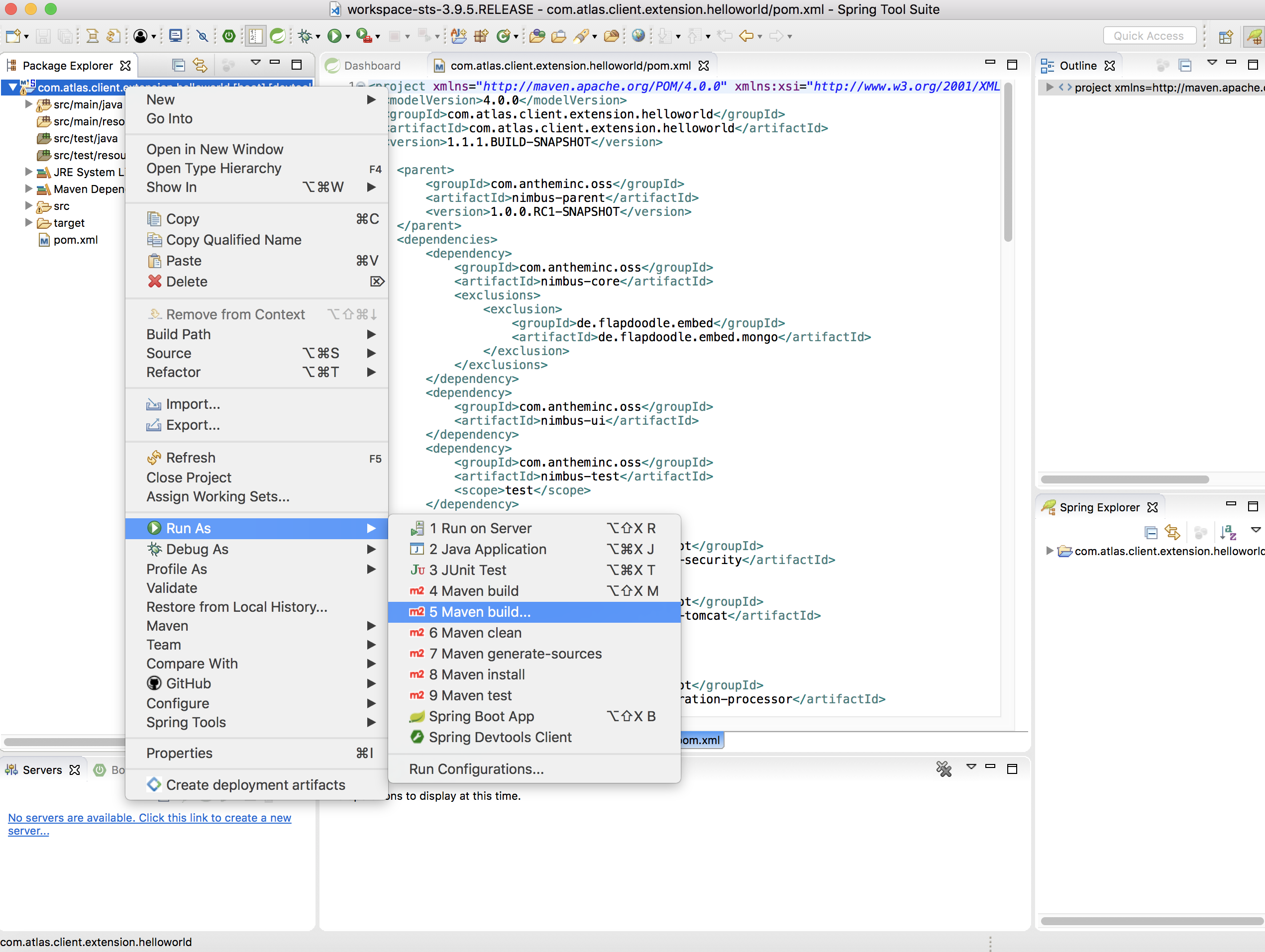

1. Right click the project folder and select Run as→m2 5 Mavenbuild.
2. Enter ‘clean install’ in the Goals field

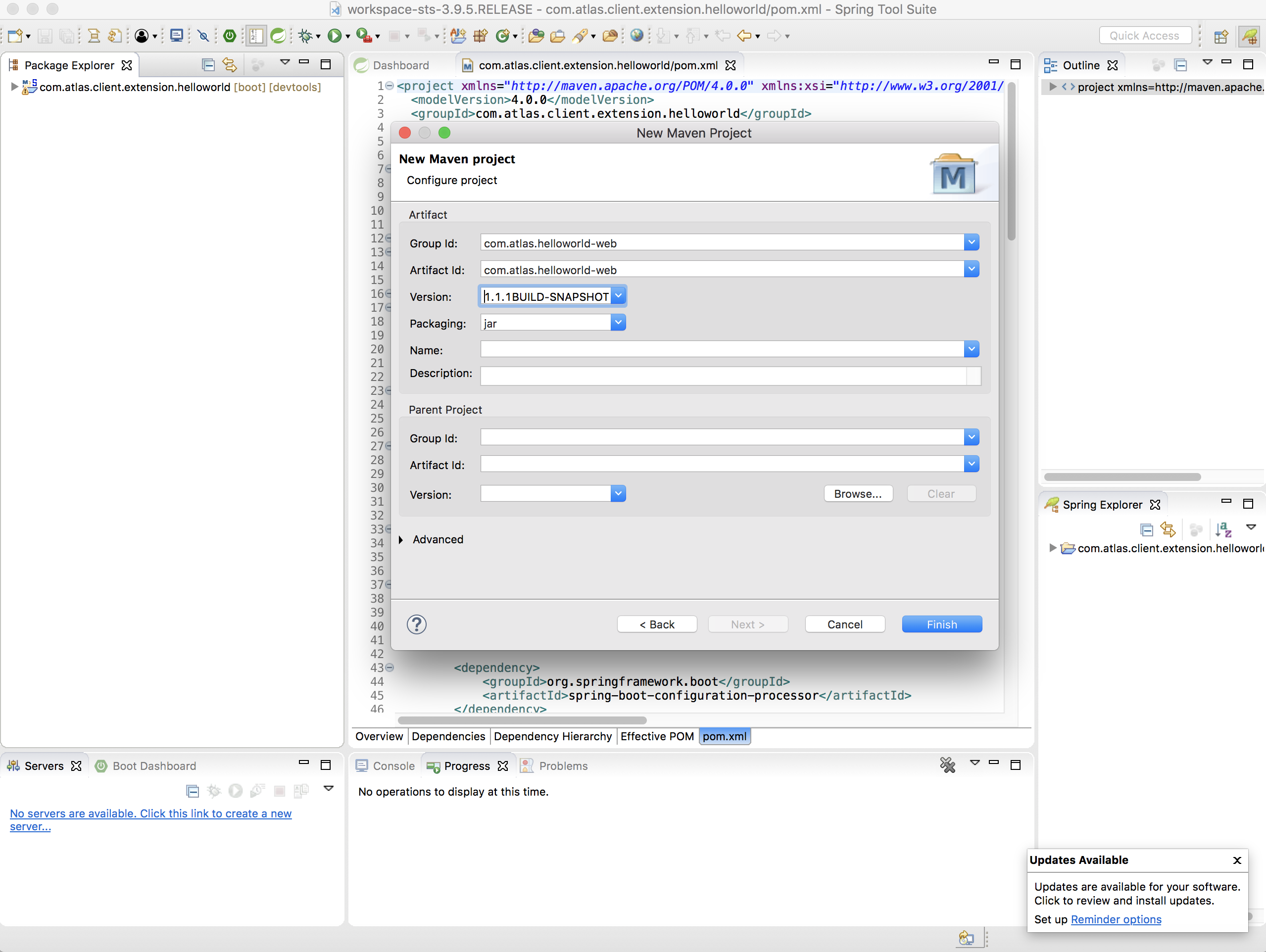

Create another project the same way. Right click the project explorer area and click New→Maven Project
You can see your workspace location. Select Create simple project and click Next
Enter the Group Id, Artifact Id and Version as follows:
1. Group Id: com.atlas.helloworld-web
2. Artifact Id: com.atlas.helloworld-web
3. Version: 1.1.1 BUILD-SNAPSHOT
Click Finish
You can see the project in the Package Explorer area.

Update Pom.xml

Expand the folder and open pom.xml (file which contains the project configuration details used by Maven)
Add the parent class information
Add the project dependencies including the corresponding extension folder (highlighted in yellow)

Add the plugins requires to configure this project

POM.xml

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <groupId>com.atlas.Helloworld-web</groupId>
  <artifactId>com.atlas.Helloworld-web</artifactId>
  <version>1.1.1 BUILD-SNAPSHOT</version>
  <parent>
        <groupId>com.antheminc.oss</groupId>
        <artifactId>nimbus-parent</artifactId>
        <version>1.1.10.BUILD-SNAPSHOT</version>
    </parent>
  <properties>
    <nimbus.version>1.1.10.BUILD-SNAPSHOT</nimbus.version>
  </properties>

  <dependencies>
    <dependency>
        <groupId>com.antheminc.oss</groupId>
        <artifactId>nimbus-core</artifactId>
        <exclusions>
            <exclusion>
                 <groupId>de.flapdoodle.embed</groupId>
                 <artifactId>de.flapdoodle.embed.mongo</artifactId>
            </exclusion>
        </exclusions>
    </dependency>
    <dependency>
        <groupId>com.antheminc.oss</groupId>
        <artifactId>nimbus-ui</artifactId>
    </dependency>
    <dependency>
        <groupId>com.antheminc.oss</groupId>
        <artifactId>nimbus-test</artifactId>
        <scope>test</scope>
    </dependency>
    <dependency>
      <groupId>com.client.extension.helloworld</groupId>
  <artifactId>com.client.extension.helloworld</artifactId>
  <version>1.1.1 BUILD-SNAPSHOT</version>
        <exclusions>
            <exclusion>
                 <groupId>de.flapdoodle.embed</groupId>
                 <artifactId>de.flapdoodle.embed.mongo</artifactId>
            </exclusion>
        </exclusions>
    </dependency>

    <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-security</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-tomcat</artifactId>
        <scope>provided</scope>
     </dependency>

    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-configuration-processor</artifactId>
    </dependency>
    <dependency>
        <groupId>junit</groupId>
        <artifactId>junit</artifactId>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-test</artifactId>
        <scope>test</scope>
    </dependency>
    <dependency>
        <groupId>org.springframework.ws</groupId>
        <artifactId>spring-ws-core</artifactId>
        <exclusions>
            <exclusion>
                <artifactId>commons-logging</artifactId>
                <groupId>commons-logging</groupId>
            </exclusion>
        </exclusions>
    </dependency>
    <dependency>
        <groupId>com.querydsl</groupId>
        <artifactId>querydsl-mongodb</artifactId>
    </dependency>
    <dependency>
        <groupId>com.querydsl</groupId>
        <artifactId>querydsl-apt</artifactId>
    </dependency>
    <dependency>
        <groupId>com.sleepycat</groupId>
        <artifactId>je</artifactId>
        <version>5.0.73</version>
    </dependency>
    <dependency>
        <groupId>org.apache.tomcat.embed</groupId>
        <artifactId>tomcat-embed-jasper</artifactId>
        <scope>provided</scope>
    </dependency>

    <dependency>
        <groupId>com.h2database</groupId>
        <artifactId>h2</artifactId>
        <!-- <scope>test</scope> -->
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-devtools</artifactId>
        <optional>true</optional>
        <scope>runtime</scope>
    </dependency>
    <dependency>
        <groupId>org.apache.httpcomponents</groupId>
        <artifactId>httpclient</artifactId>
    </dependency>
  </dependencies>
  <build>
    <resources>
       <resource>
       <directory>${project.basedir}/src/main/resources</directory>
       </resource>
    </resources>

  </build>
</project>

Build the project (Refer 5.1→8)

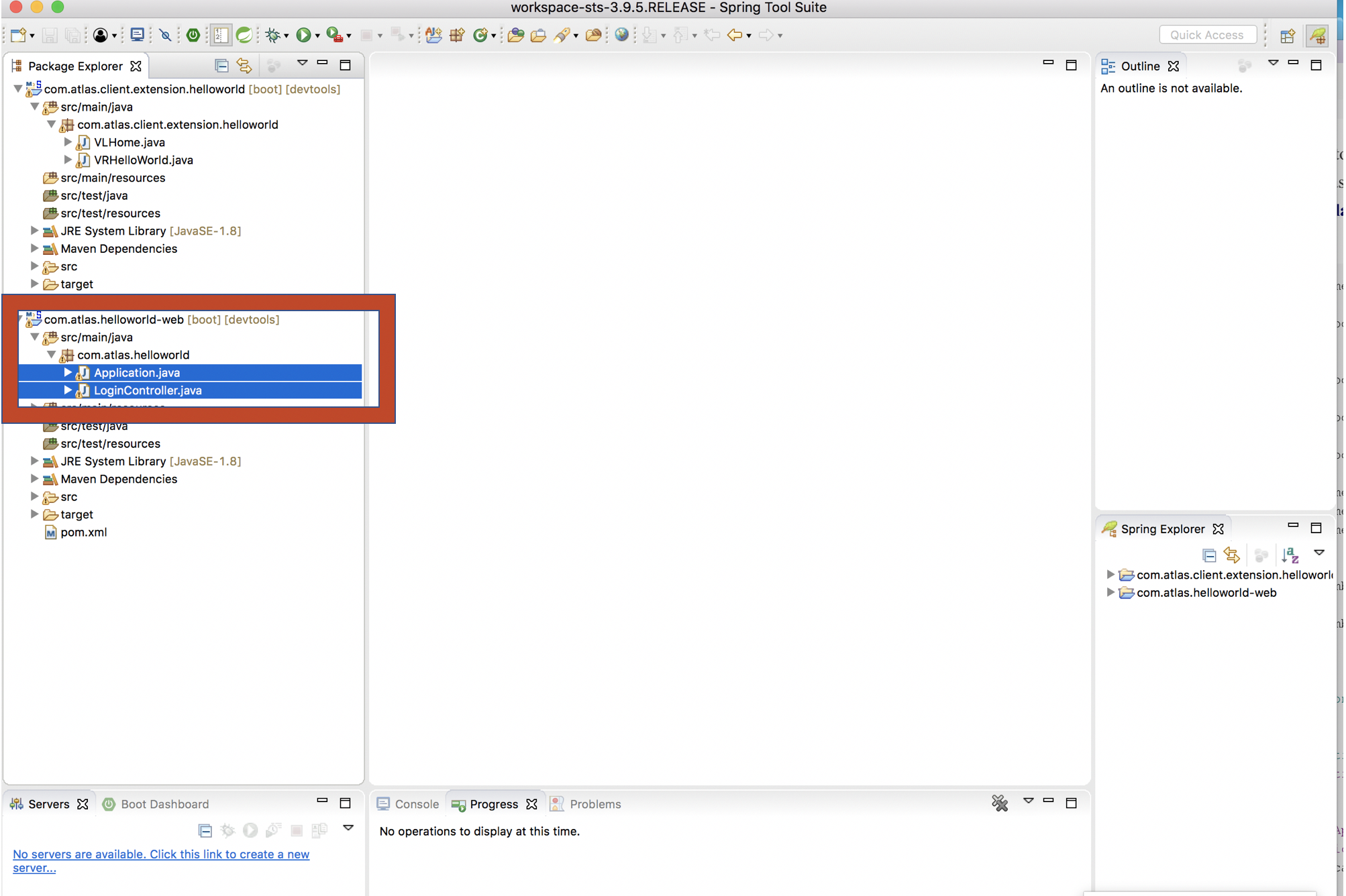

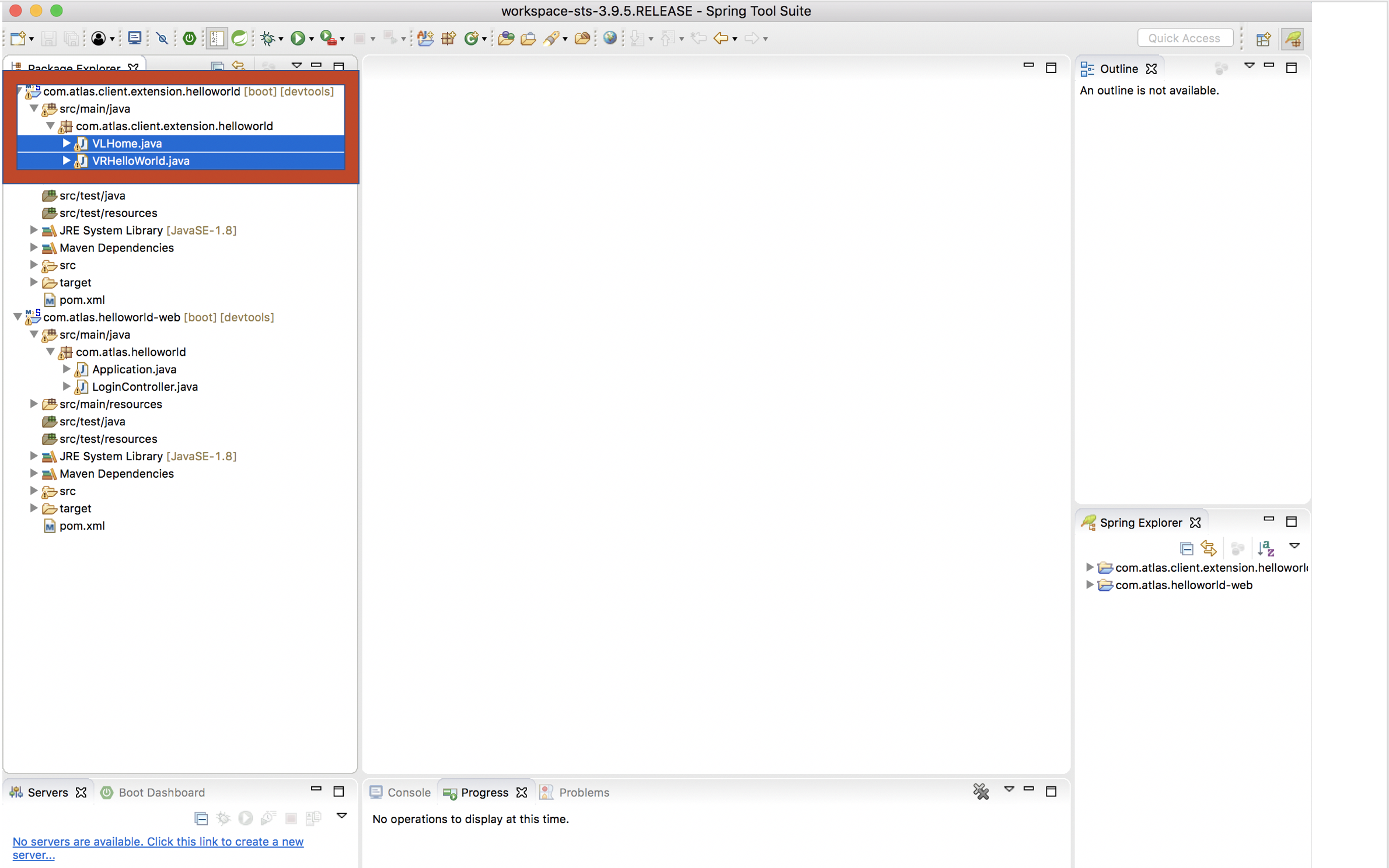

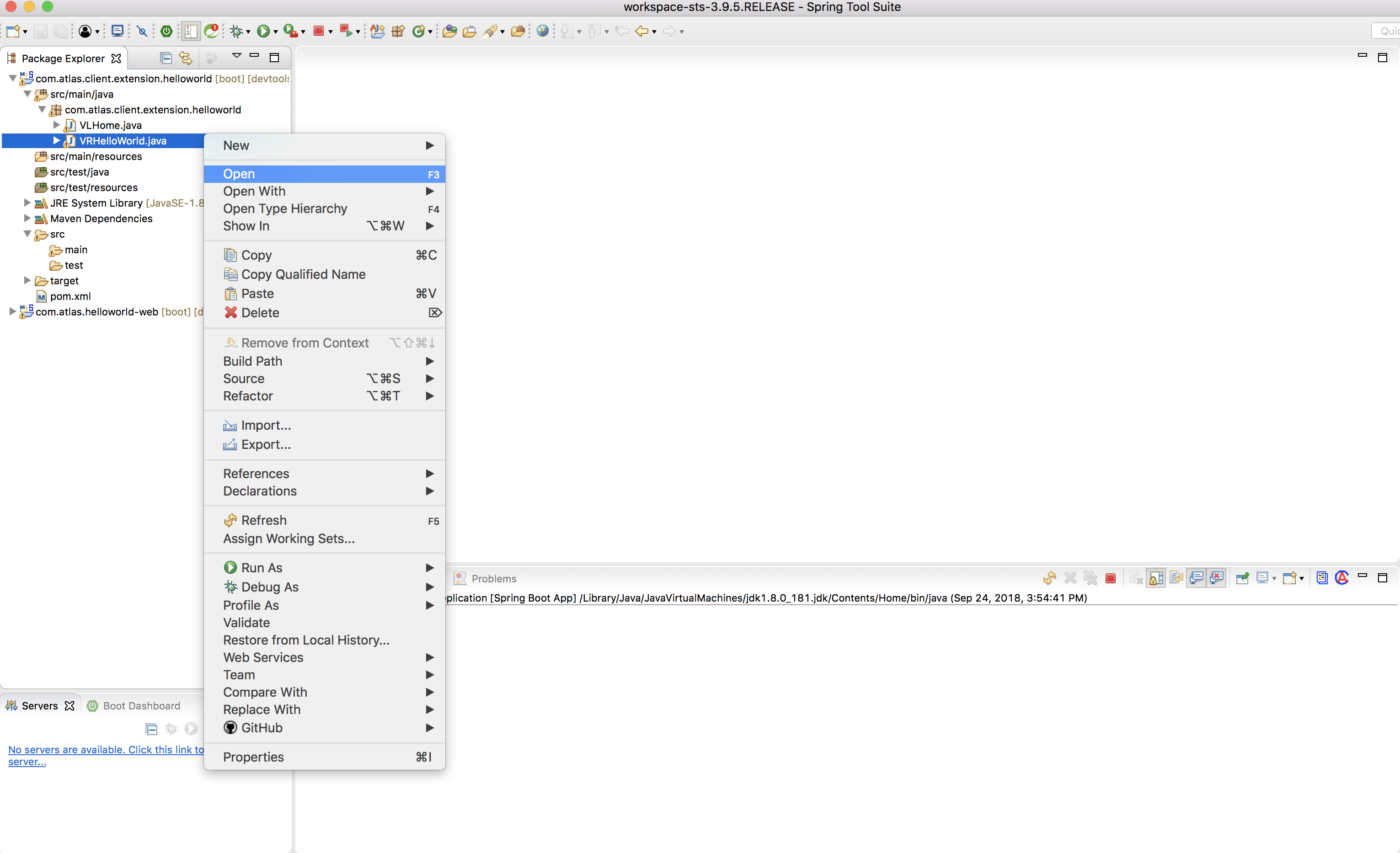

Create VRHelloworld.java class inside com.atlas.client.extension.helloworld → src/main/java → com.atlas.client.extension.helloworld

VRHelloworld.java

//Necessary packages
import javax.validation.constraints.NotNull;
import com.antheminc.oss.nimbus.domain.defn.Domain;
import com.antheminc.oss.nimbus.domain.defn.MapsTo;
import com.antheminc.oss.nimbus.domain.defn.Model;
import com.antheminc.oss.nimbus.domain.defn.Model.Param.Values.Source;
import com.antheminc.oss.nimbus.domain.defn.Repo;
import com.antheminc.oss.nimbus.domain.defn.Domain.ListenerType;
import com.antheminc.oss.nimbus.domain.defn.MapsTo.Path;
import com.antheminc.oss.nimbus.domain.defn.MapsTo.Type;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Form;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Header;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Page;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Paragraph;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Section;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Tile;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.ViewRoot;
import com.antheminc.oss.nimbus.domain.defn.extension.Content.Label;
import com.antheminc.oss.nimbus.domain.model.config.ParamValue;

import lombok.Getter;
import lombok.Setter;
import lombok.ToString;

// Defining the Domain Entity
@Domain(value ="helloworldview", includeListeners = {ListenerType.websocket})

//Repository values
@Repo(value=Repo.Database.rep_none,cache=Repo.Cache.rep_device)

//Generate Getter and Setter for the class
@Getter @Setter @ToString(callSuper=true)

//Layout of the Root
@ViewRoot(layout = "home")
public class VRHelloworld{

// Define a Page instance
@Page(defaultPage=true)
private VPHelloworld vpHelloworld;

// Define a Tile instance
@Model
@Getter @Setter
public static class VPHelloworld{

     @Tile(size = Tile.Size.Large)
     private VTHelloworld vtHelloworld;
}

// Add a Header variable and define a Section instance
@Model
@Getter @Setter
public static class VTHelloworld{

    @Header(size=Header.Size.H3)
    private String addHelloWorldHeader;

    @Section
    private VSHelloworld vsHelloworld;
}

// Define a Form instance which has one column
@Model
@Getter @Setter
public static class VSHelloworld{

        @Form(cssClass="oneColumn")
        private VFHelloworld vfHelloworld;
    }

//Define a Paragraph with the Label “Hello All”
@Model
    @Getter @Setter
    public static class VFHelloworld {

        @Paragraph
        @Label(value = "Hello ALL")
        private String title1;

         }
    }

Create VLHome.java class inside com.atlas.client.extension.helloworld → src/main/java → com.atlas.client.extension.helloworld

VLHome.java

import com.antheminc.oss.nimbus.domain.defn.Domain;
import com.antheminc.oss.nimbus.domain.defn.Domain.ListenerType;
import com.antheminc.oss.nimbus.domain.defn.Model;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Hints;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Initialize;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Link;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Page;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.PageHeader;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Paragraph;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Section;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Hints.AlignOptions;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.PageHeader.Property;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Section.Type;
import com.antheminc.oss.nimbus.domain.defn.extension.Content.Label;
import com.antheminc.oss.nimbus.domain.defn.Repo;
import com.antheminc.oss.nimbus.domain.defn.Repo.Cache;
import com.antheminc.oss.nimbus.domain.defn.Repo.Database;

import lombok.Getter;
import lombok.Setter;

@Domain(value="home", includeListeners={ListenerType.websocket})
@Repo(value = Database.rep_none, cache = Cache.rep_device)
@Getter @Setter
public class VLHome {

    @Page private VPHome vpHome;

    @Model @Getter @Setter
    public static class VPHome {

        @Section(Type.HEADER)
        private VSHomeHeader vsHomeHeader;

    }
    @Model @Getter @Setter
    public class VSHomeHeader {


        @PageHeader(Property.APPTITLE)
        @Paragraph
        @Label(value = "Welcome !")
        private String title;

    }
}

Create Application.java to start up our spring boot application and LoginController.java class inside com.atlas.helloworld-web → src/main/java → com.atlas.helloworld

Application.java

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.EnableAutoConfiguration;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.boot.builder.SpringApplicationBuilder;
import org.springframework.boot.web.support.SpringBootServletInitializer;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.ComponentScan;
import org.springframework.context.annotation.Configuration;

import com.antheminc.oss.nimbus.domain.session.HttpSessionProvider;
import com.antheminc.oss.nimbus.domain.session.SessionProvider;


@Configuration
@SpringBootApplication(scanBasePackageClasses=LoginController.class)
@ComponentScan
@EnableAutoConfiguration
public class Application extends SpringBootServletInitializer {
    @Override
    protected SpringApplicationBuilder configure(SpringApplicationBuilder application){
        return application.sources(Application.class);
    }
    public static void main(String[] args) throws Exception {
        SpringApplication.run(Application.class, args);
    }

    @Bean
    public SessionProvider sessionProvider() {
        return new HttpSessionProvider();

LoginController.java

import java.util.Enumeration;
import java.util.List;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;

import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.core.context.SecurityContextHolder;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.ResponseBody;
import com.antheminc.oss.nimbus.entity.client.access.ClientUserRole;
import com.antheminc.oss.nimbus.entity.client.user.ClientUser;
import com.antheminc.oss.nimbus.support.JustLogit;


@Controller
public class LoginController {

    @RequestMapping(value = "/login", method = RequestMethod.GET)
    public void login(HttpServletRequest request, HttpServletResponse response) throws Exception {
    response.sendRedirect("/helloworld/#/h/helloworldview/vpHelloworld");

    }

    private JustLogit _logger = new JustLogit(this.getClass());
}

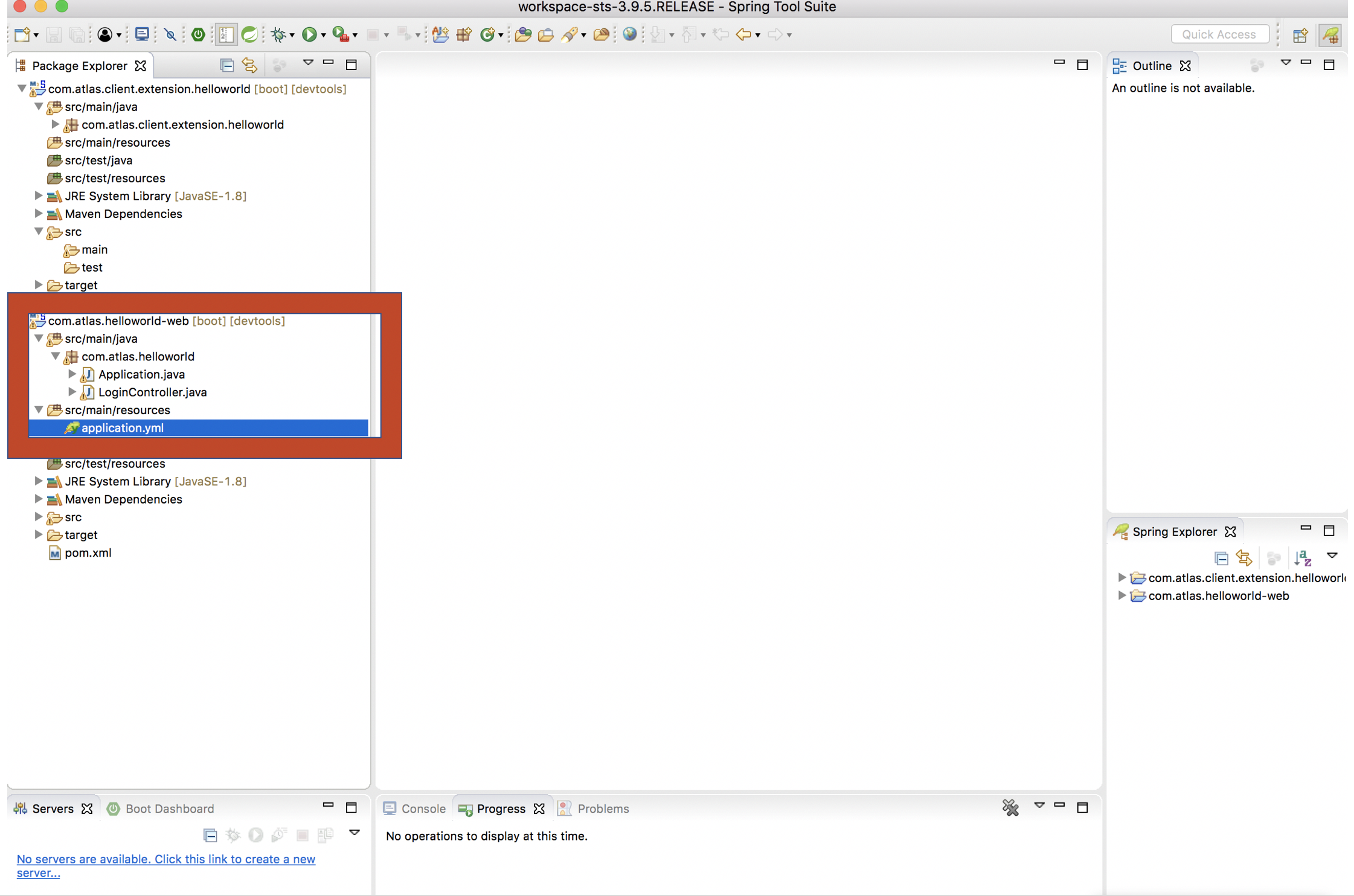

Create application.yml file under com.atlas.helloworld-web → src/main/resources to tell the framework about the classes we configured, database connection etc. . We can reuse this application.yml file for any of our applications by making changes to the following:

application name
context path

basePackages

Application.yml

spring:
  application:
    name: helloworld
  h2:
    console:
      enabled: true
      path: /console/
  rabbitmq:
    host: localhost
    port: 5672
  redis:
    host: localhost
    port: 6379
  data:
    mongodb:
      host: localhost
      database: ltss
      port: 27017
  activiti:
    processDefinitionLocationPrefix:  classpath*:process-defs/**.xml
  mvc:
    view:
      prefix: /
      suffix: .jsp
  sqldatasource:
    driver-class-name: oracle.jdbc.driver.OracleDriver

#    datasource:
#      url: jdbc:mysql://localhost/test
#      driver-class-name: com.mysql.jdbc.Driver
packageName: com.example
application:
  mode: online
  error:
    genericMsg: System Error ERR.UNIQUEID
#  exceptions:
#    com.antheminc.oss.nimbus.FrameworkRuntimeException: Runtime Exception - ERR.UNIQUEID
#    genericMsg: ERR.UNIQUEID - System Error. ## Can use ERR.UNIQUEID as a placeholder to replace the uniqueId for error.

##Logging properties
#logging.file=${LOG_DIR_PATH}/${spring.application.name}.log
#logging.file=/var/tmp/nimbus/logs/${spring.application.name}.log

serviceUserName: integration_service
servicePassword: HashedPwd1234!!!!!!!!!!!!!****

logging:
  file: ${HOME}/Documents/nimbuslogs/${spring.application.name}.log
  level:
    reactor.io.net.impl.netty.tcp: DEBUG
  pattern:
    file: "%d{yyyy-MM-dd HH:mm:ss.SSS} ${LOG_LEVEL_PATTERN:-%5p} ${PID:- } [%X{SESSIONID:- }] --- [%t] %-40.40logger{39} : %replace(%replace(%m){'\n', ''}){'\r', ''} %n${LOG_EXCEPTION_CONVERSION_WORD: %wEx}"
    console: "%d{yyyy-MM-dd HH:mm:ss.SSS} ${LOG_LEVEL_PATTERN:-%5p} ${PID:- } [%X{SESSIONID:- }] --- [%t] %-40.40logger{39} : %replace(%replace(%m){'\n', ''}){'\r', ''} %n${LOG_EXCEPTION_CONVERSION_WORD: %wEx}"

#logging.level.org.springframework=DEBUG

jwt:
  secret: nimbustest
  algorithm: HS512

process:
  key:
    regex:
     ([A-Za-z0-9_\\-\\*~\\?=\\.\\$]+)
  database:
    driver:
      embeddedH2
    url:
      embeddedH2
    username:
      embeddedH2
    password:
      embeddedH2
    taskUpdateQuery:
      update ACT_RU_TASK set TASK_DEF_KEY_ = ?, NAME_ = ? WHERE ID_=?
    executionUpdateQuery:
      update ACT_RU_EXECUTION set ACT_ID_ = ?  WHERE ID_=? AND ACT_ID_=?
  history:
    level:
      full
  definitions:
   - classpath*:process-defs/**.xml
  rules:
   - rules/**.drl
  customDeployers:

platform:
  config:
    cookies:
      gateway:
        name: GATEWAYSESSIONID
        path: /

      api:
        name: APISESSIONID
        path: /

      sticky:
        name: STICKYSERVERID
        path: /
    secure:
      regex: "^[a-zA-Z0-9<>()\\[\\]@/: &.=?,$#_-]{1,1000}"
server:
  port: 8082
  session:
    timeout: 1800
  context-path: /helloworld
#  context-path: /api
auth-server: http://localhost:8891
security:
  basic:
    enabled: false
  oauth2:
    resource:
      tokenInfoUri: ${auth-server}/auth-service/oauth/check_token
    client:
      clientId: nimbus
      clientSecret: xfer498

eureka:
  client:
    enabled: false

ruleBasedRequestHandler:
                     - defaultRuleBasedRequestHandler
                     - defaultRuleBasedResponseHandler

scriptBasedRequestHandler: defaultScriptBasedRequestHandler
scriptBasedResponseHandler: defaultScriptBasedResponseHandler

scriptHandlerType: cript
customHandlerType: Custom

stomp:
    hostName: localhost
    port: 61613

domain:
  model:
    basePackages:
      - com.atlas.client.extension.helloworld
    typeClassMappings:
      java.lang.String :
        string
    includeFilter: ['a','b']
    persistenceStrategy: ATOMIC
  action: abc

  validation:
    markerAnnotations:
      javax.validation.Constraint
    markerInterfaces:

#logging:
#  file: ${HOME}/Documents/nimbuslogs/platform-core-web.log
user:
  permissionToActions:
    ACCESS:
      _get,_info,_search,_new,_replace,_update,_delete,_nav,_process
    READ:
      _get,_info,_search,_getAll,_nav,_process
    CREATE:
      _new,_nav,_process
    UPDATE:
      _update,_replace,_nav,_process
    DELETE:
      _delete,_nav,_process
  #authenticationStrategyBeans:
     #jwtAuthenticationStrategy, ldapAuthenticationStrategy
template:
  definitions:
    - path: e_post/*/comm/icr/p/flow_umcase/_findPatient/_process/_execute
      id: flow_umcase_findPatient
      criteria:
model:
  persistence:
    strategy:
      mode:
        ATOMIC
dsl:
  behavior:
    extensions:
      #$execute:
        #$save
quartz:
  enabled: true
  frequency: 1000

org:
  quartz:
    scheduler:
      instanceName:
        spring-activiti-quartz
      instanceId:
        AUTO
    threadPool:
      threadCount: 2
    jobStore:
      class: org.quartz.impl.jdbcjobstore.JobStoreTX
      driverDelegateClass: org.quartz.impl.jdbcjobstore.StdJDBCDelegate
      useProperties: true
      misfireThreshold: 60000
      tablePrefix: QRTZ_
      isClustered: true
      clusterCheckinInterval: 20000

session:
  userKey: client-user-key

staticResourcesPath: ./target/webapp/

app:
  endpoints:
    ltss-integration-services: http://localhost:8080/ltss-integration-services
    cue: http://va10dwviss323.us.ad.wellpoint.com:81/CUEDEV_RESTServices

search:
  threshold:
    50

ext:
  repository:
    targetUrl:
      pharmacydrug: ${app.endpoints.ltss-integration-services}
      memberauthorization: ${app.endpoints.ltss-integration-services}
      memberauthorizations: ${app.endpoints.ltss-integration-services}
      adhocmember: ${app.endpoints.ltss-integration-services}

cueIntegration:
  applicationId: 5666A5D6-3303-4E2A-BC45-05A3191286F0
  cueServiceUrl: ${app.endpoints.cue}/api/documents
  fileUploadUrl: ${app.endpoints.ltss-integration-services}/fileupload
  cueDocViewUrl: ${app.endpoints.ltss-integration-services}
  # templateServiceUrl: http://va10twviss352.us.ad.wellpoint.com:85/CUE_RESTServices_SIT/api/GenerateDocument
  # assessmentServiceUrl: http://va10twviss352.us.ad.wellpoint.com:85/CUE_RESTServices_SIT/api/generateassessment
#  applicationId: 58C02B8C-0FD6-4FBD-9AC3-90493B232F2D
#  templateServiceUrl: http://va10twviss352.us.ad.wellpoint.com:85/CUE_RESTServices_SIT/api/GenerateDocument

#  assessmentServiceUrl: http://va10twviss352.us.ad.wellpoint.com:85/CUE_RESTServices_SIT/api/generateassessment

Build the project(Refer 5.1→8)

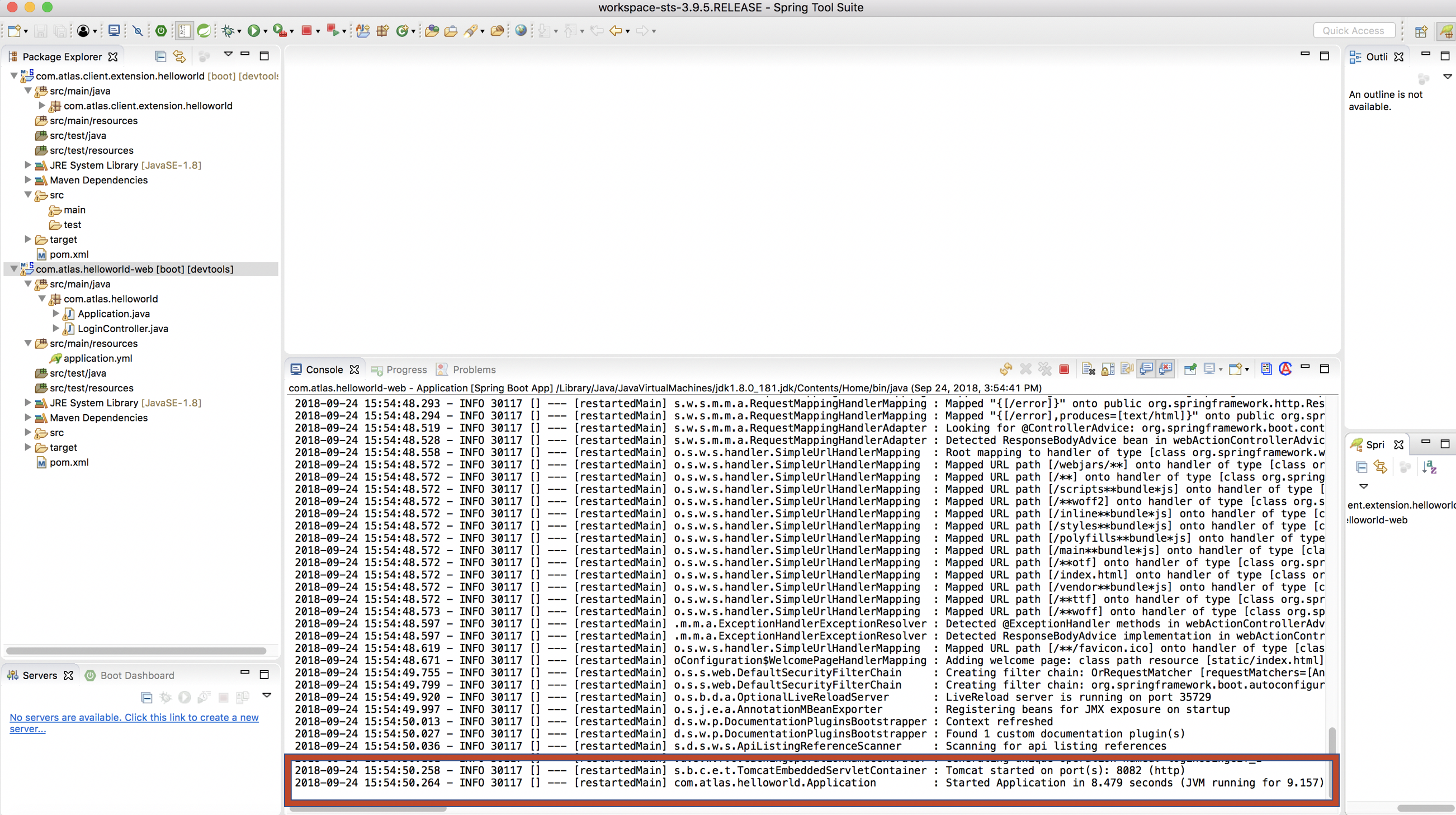

Run the application:
1. Right click com.atlas.helloworld-web and click Run as→Spring Boot App
2. Wait to the see the Started Application log in the console

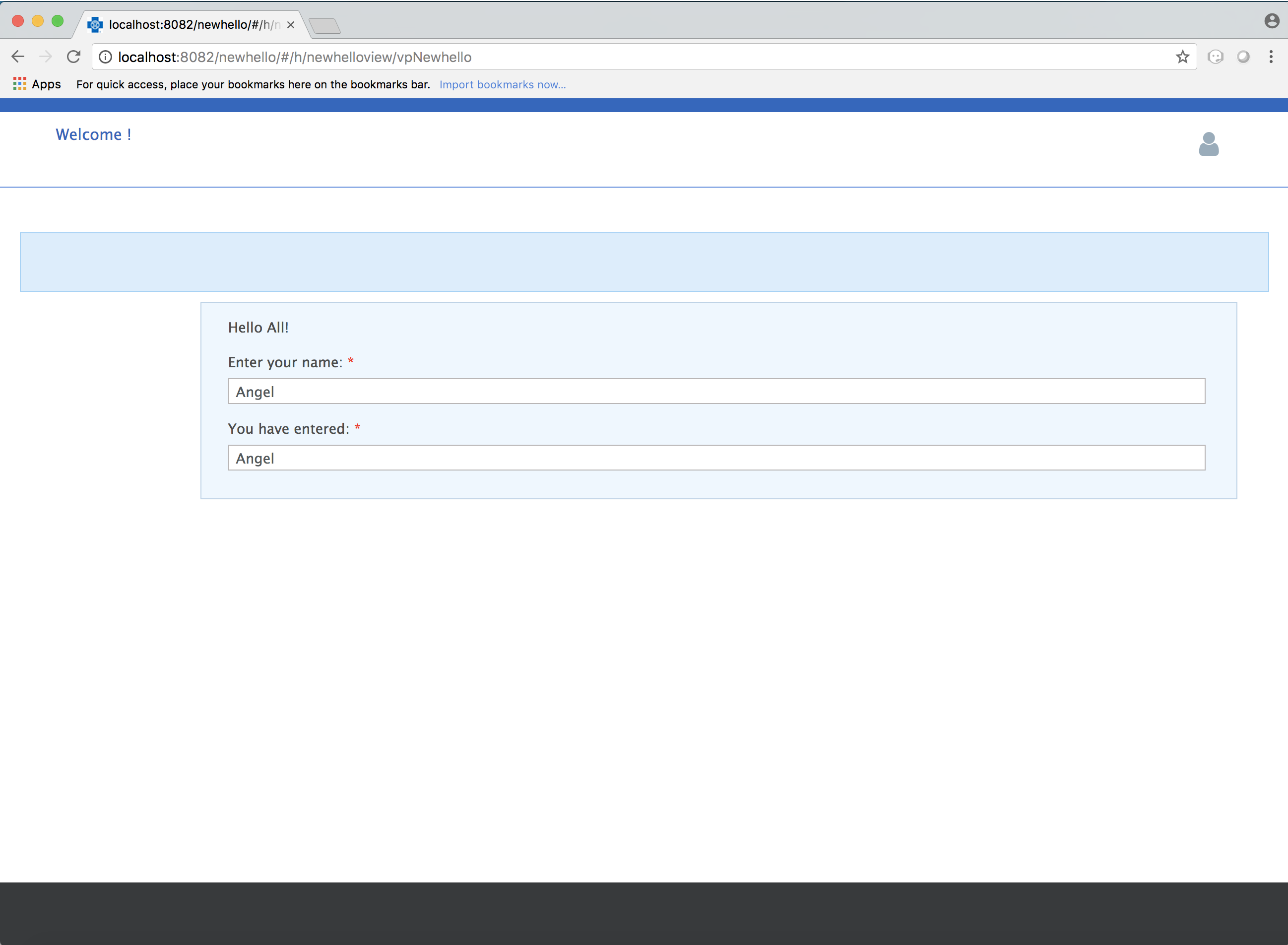

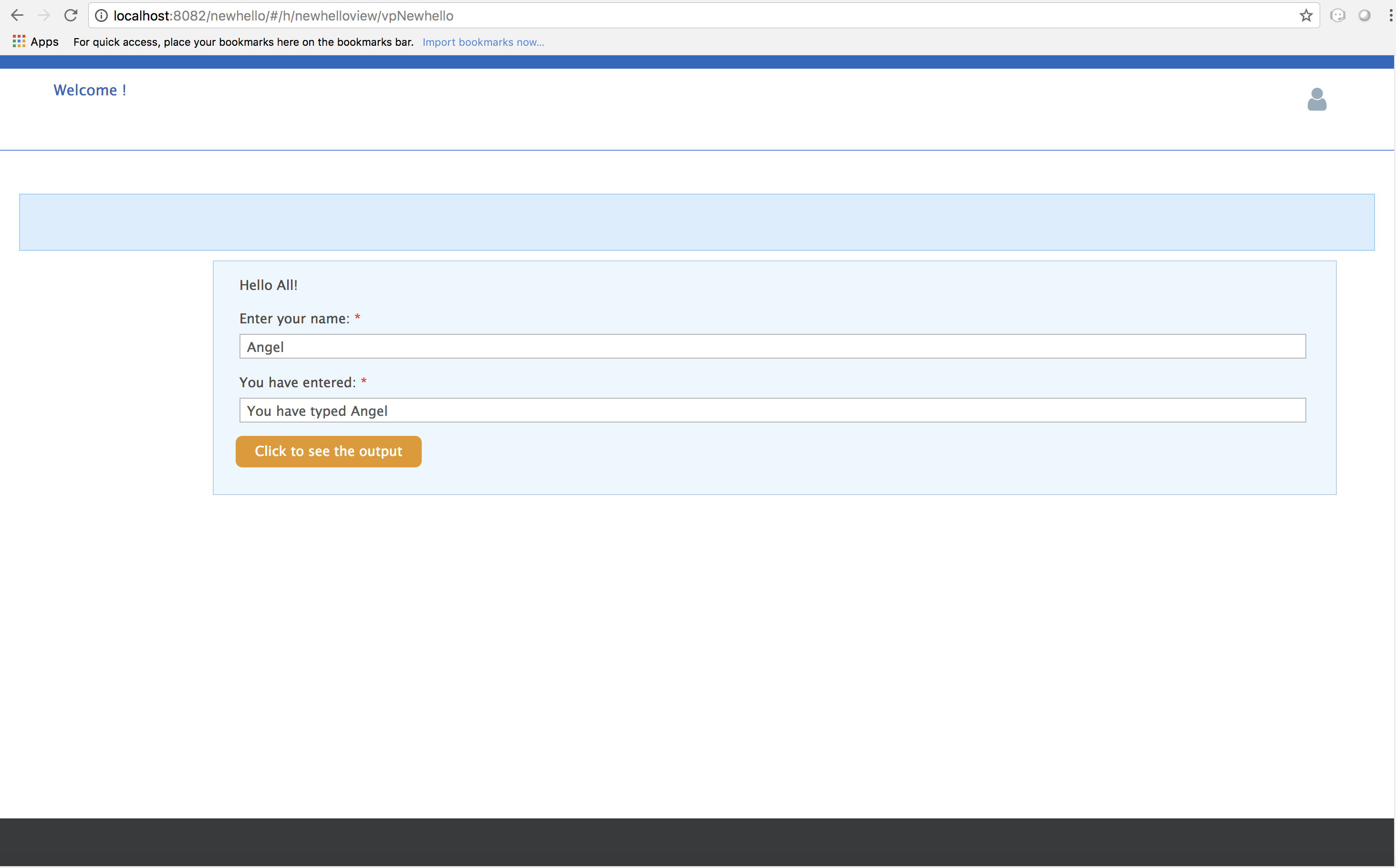

Go to http://localhost:8082/helloworld/login to view your output

Form Elements

Objective

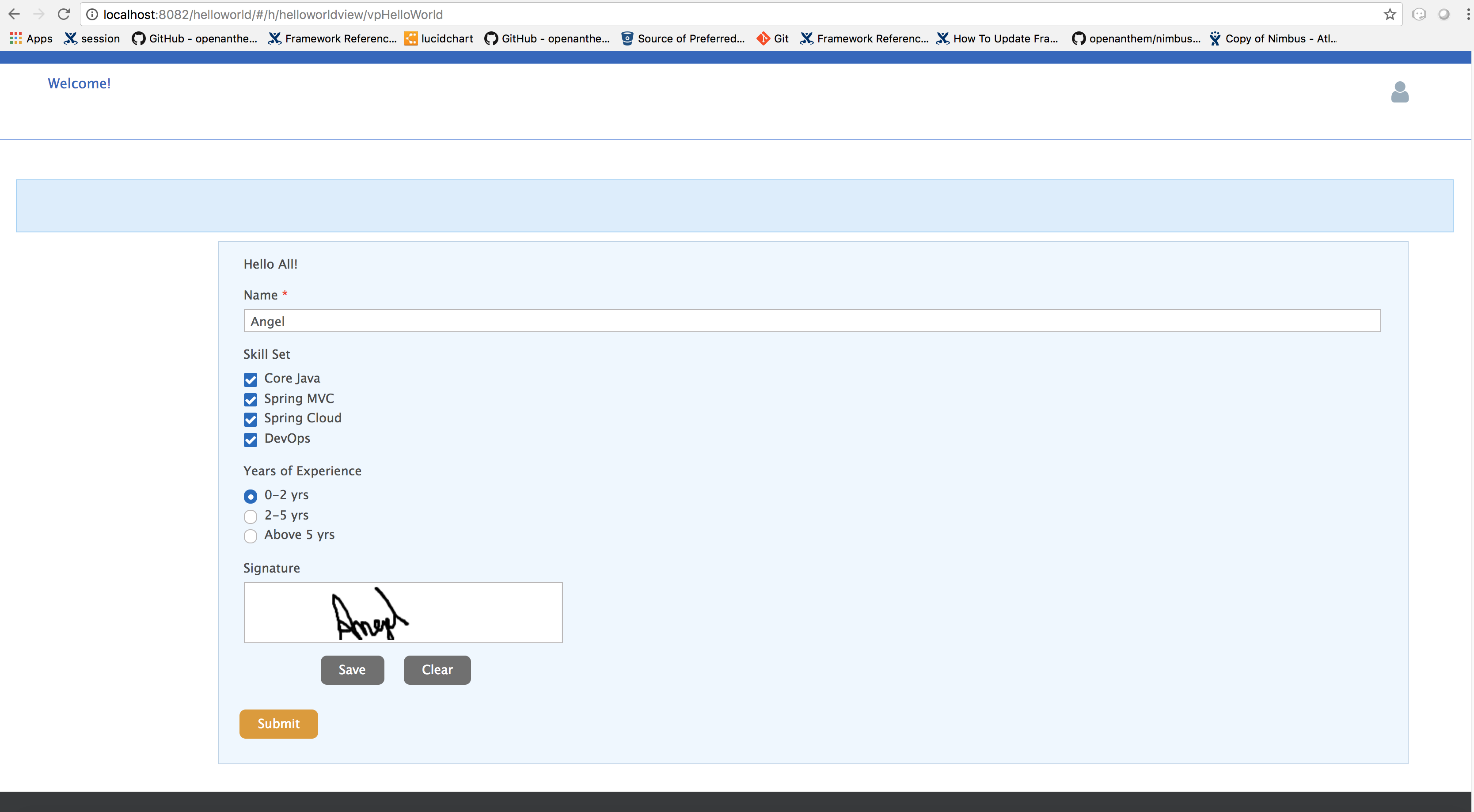

To add form elements like Textbox, Radio button, Check box, Signature and Submit button to our Hello World page.

Steps

Add form elements to our webpage with the help of simple annotations.
Open VRHelloworld.java
Update VRHelloWorld.java as follows:

VRHelloWorld.java

package com.atlas.client.extension.helloworld;

import java.util.ArrayList;
import java.util.List;
import javax.validation.constraints.NotNull;
import com.antheminc.oss.nimbus.domain.defn.Domain;
import com.antheminc.oss.nimbus.domain.defn.MapsTo;
import com.antheminc.oss.nimbus.domain.defn.Model;
import com.antheminc.oss.nimbus.domain.defn.Model.Param.Values.Source;
import com.antheminc.oss.nimbus.domain.defn.Repo;
import com.antheminc.oss.nimbus.domain.defn.Domain.ListenerType;
import com.antheminc.oss.nimbus.domain.defn.MapsTo.Path;
import com.antheminc.oss.nimbus.domain.defn.MapsTo.Type;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Button;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.ButtonGroup;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.CheckBoxGroup;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Form;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Header;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Page;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Paragraph;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Radio;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Section;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Signature;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.StaticText;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.TextBox;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Tile;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.ViewRoot;
import com.antheminc.oss.nimbus.domain.defn.extension.Content.Label;
import com.antheminc.oss.nimbus.domain.model.config.ParamValue;

import lombok.Getter;
import lombok.Setter;
import lombok.ToString;

// Defining the Domain Entity
@Domain(value ="helloworldview", includeListeners = {ListenerType.websocket})

//Repository values
@Repo(value=Repo.Database.rep_none,cache=Repo.Cache.rep_device)

//Generate Getter and Setter for the class
@Getter @Setter @ToString(callSuper=true)

//Layout of the Root
@ViewRoot(layout = "home")
public class VRHelloworld{

// Define a Page instance
@Page(defaultPage=true)
private VPHelloworld vpHelloworld;

// Define a Tile instance
@Model
@Getter @Setter
public static class VPHelloworld{

     @Tile(size = Tile.Size.Large)
     private VTHelloworld vtHelloworld;
}

// Add a Header variable and define a Section instance
@Model
@Getter @Setter
public static class VTHelloworld{

    @Header(size=Header.Size.H3)
    private String addHelloWorldHeader;

    @Section
    private VSHelloworld vsHelloworld;
}

// Define a Form instance which has one column
@Model
@Getter @Setter
public static class VSHelloworld{

        @Form(cssClass="oneColumn")
        private VFHelloworld vfHelloworld;
    }

//Define a Paragraph with the Label “Hello All”
@Model
    @Getter @Setter
    public static class VFHelloworld {

        @Paragraph
        @Label(value = "Hello All!")
        private String title1;

       // Creates a Textbox which is not null and has the label Name
         @TextBox @NotNull
         @Label(" Name") private String name;

        /* Creates a CheckBox which changes on an event
           with the label Choose an option and has options defined
           in YNType.class
        */
         @CheckBoxGroup(postEventOnChange = true)
      @Model.Param.Values(value = YNType1.class)
      @Label(value = "Skill Set") private String checkbox;

      /* Creates a RadioButton which changes on an event
         with the label Choose an option and has options defined
         in YNType.class
      */ @Radio(postEventOnChange = true)
      @Model.Param.Values(value = YNType.class)
         @Label(value = "Years of Experience") private String radio;

        /* Creates a Signature box which accepts signature and
           has the label  Signature
        */
         @Signature(postEventOnChange=true)
         @Label(" Signature") private String signature;

         // Creates a Button with style PRIMARY and has the label Submit
         @Button(style=Button.Style.PRIMARY)
         @Label(" Submit")
         private String submit;
}
        /* YNTypeclass creates a List which accept values of the
           type ParamValue and has values 0-2 yrs,2-5 yrs, Above 5 yrs
        */
          public static class YNType implements Source
      {
         @Override
          public List<ParamValue> getValues(String paramPath)
           {
             List<ParamValue> values = new ArrayList<>();
              values.add(new ParamValue("0", "0-2 yrs"));
              values.add(new ParamValue("2", "2-5 yrs"));
              values.add(new ParamValue("5", "Above 5 yrs"));
              return values;
            }
       }



        /* YNTypeclass1 creates a List which accept values of the
           type ParamValue and has values Core Java,Spring MVC, Spring Cloud,
           DevOps
        */

       public static class YNType1 implements Source
       {
          @Override
            public List<ParamValue> getValues(String paramPath)
             {
              List<ParamValue> values = new ArrayList<>();
              values.add(new ParamValue("CJ", "Core Java"));
              values.add(new ParamValue("SM", "Spring MVC"));
              values.add(new ParamValue("SC", "Spring Cloud"));
              values.add(new ParamValue("De", "DevOps"));
              return values;
             }
          }
}

Build the project(Refer 5.1→8)
Run the application (Refer 5.1→21)
Output:

Using drools within framework

Objective

Changing the state of the variable with the help of a drools file

Steps

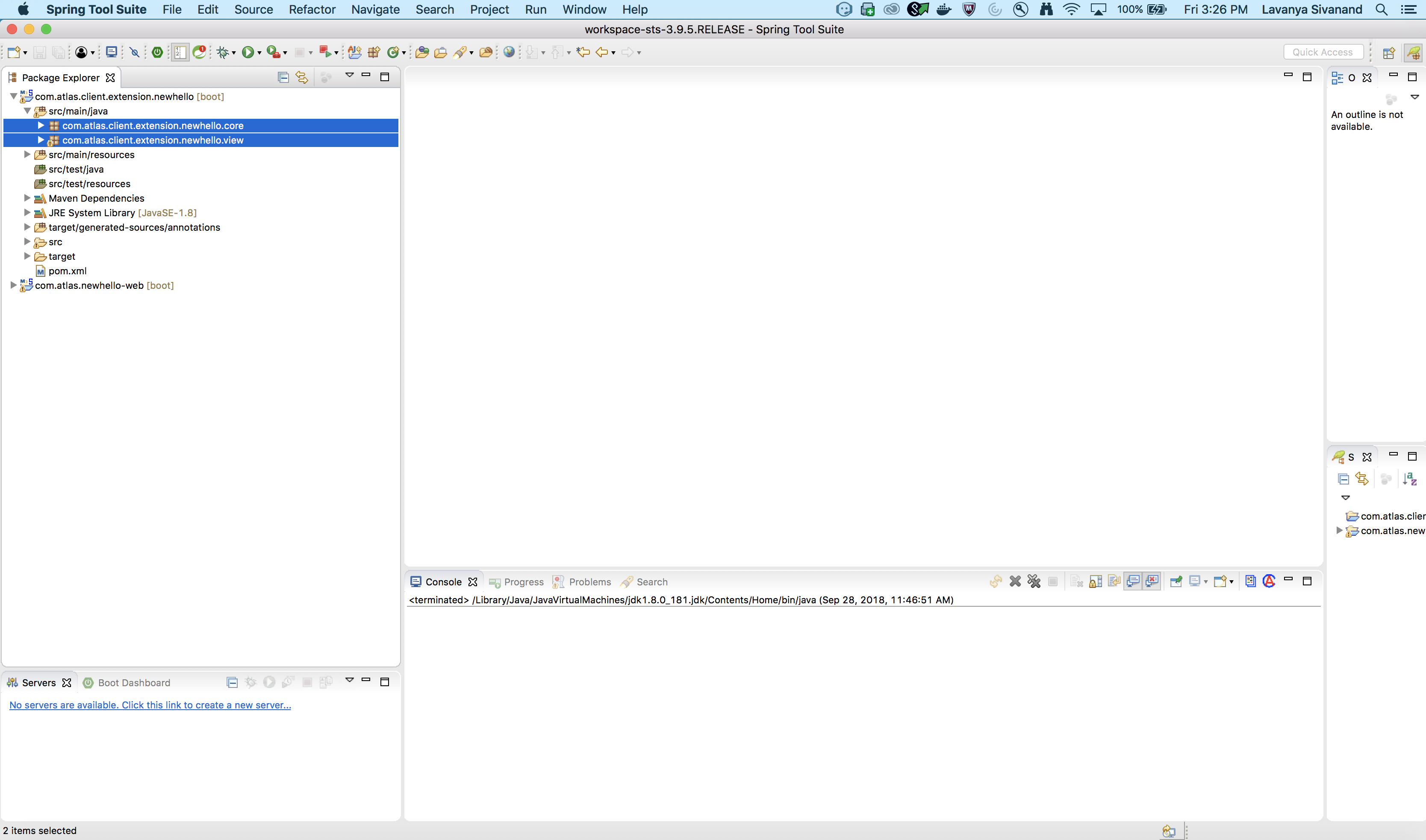

Create 2 new maven projects:
1. com.atlas.client.extension.newhello
2. com.atlas.newhello-web

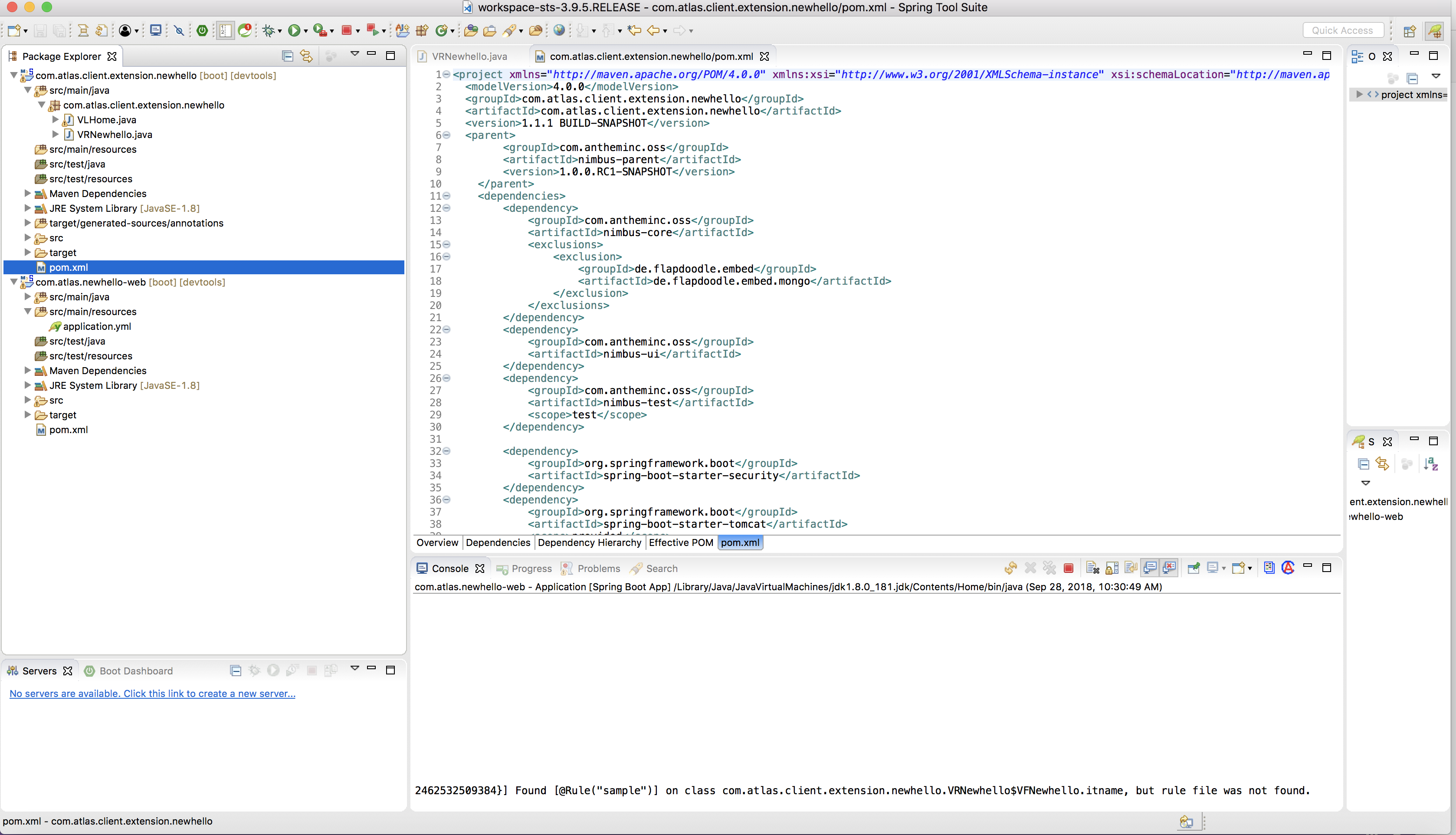

Update pom.xml

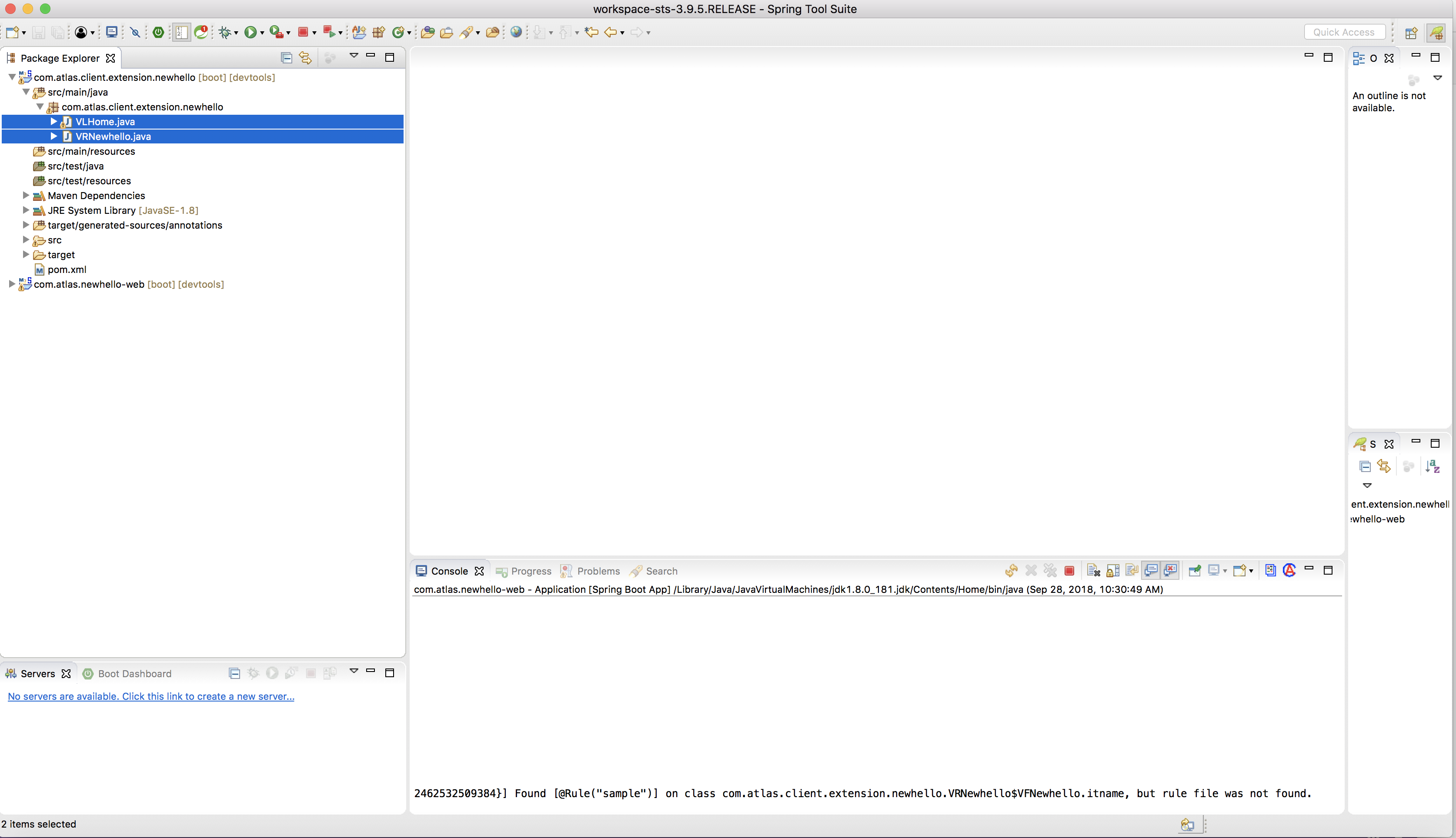

Create 2 java classes inside com.atlas.client.extension.newhello

VLHome.java

VRNewhello.java

VLHome.java

package com.atlas.client.extension.newhello;
import com.antheminc.oss.nimbus.domain.defn.Domain;
import com.antheminc.oss.nimbus.domain.defn.Domain.ListenerType;
import com.antheminc.oss.nimbus.domain.defn.Model;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Hints;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Initialize;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Link;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Page;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.PageHeader;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Paragraph;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Section;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Hints.AlignOptions;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.PageHeader.Property;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Section.Type;
import com.antheminc.oss.nimbus.domain.defn.extension.Content.Label;
import com.antheminc.oss.nimbus.domain.defn.Repo;
import com.antheminc.oss.nimbus.domain.defn.Repo.Cache;
import com.antheminc.oss.nimbus.domain.defn.Repo.Database;

import lombok.Getter;
import lombok.Setter;

@Domain(value="home", includeListeners={ListenerType.websocket})
@Repo(value = Database.rep_none, cache = Cache.rep_device)
@Getter @Setter
public class VLHome {

    @Page private VPHome vpHome;

    @Model @Getter @Setter
    public static class VPHome {

        @Section(Type.HEADER)
        private VSHomeHeader vsHomeHeader;

    }
    @Model @Getter @Setter
    public class VSHomeHeader {


        @PageHeader(Property.APPTITLE)
        @Paragraph
        @Label(value = "Welcome !")
        private String title;

    }
}

VRNewHello.java

package com.atlas.client.extension.newhello;

import javax.validation.constraints.NotNull;
import com.antheminc.oss.nimbus.domain.defn.Domain;
import com.antheminc.oss.nimbus.domain.defn.Model;
import com.antheminc.oss.nimbus.domain.defn.Repo;
import com.antheminc.oss.nimbus.domain.defn.Domain.ListenerType;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Form;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Header;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Page;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Paragraph;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Section;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.TextBox;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Tile;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.ViewRoot;
import com.antheminc.oss.nimbus.domain.defn.extension.Content.Label;
import com.antheminc.oss.nimbus.domain.defn.extension.Rule;

import lombok.Getter;
import lombok.Setter;
import lombok.ToString;

@Domain(value ="newhelloview", includeListeners = {ListenerType.websocket})
@Repo(value=Repo.Database.rep_none,cache=Repo.Cache.rep_device)
@Getter @Setter @ToString(callSuper=true)
@ViewRoot(layout = "home")
public class VRNewhello {

     @Page(defaultPage=true)
        private VPNewhello vpNewhello;

@Model
@Getter @Setter
public static class VPNewhello{

  @Tile(size = Tile.Size.Large)
  private VTNewhello vtNewhello;
}

@Model
@Getter @Setter
public static class VTNewhello{

 @Header(size=Header.Size.H3)
 private String addHelloWorldHeader;

 @Section
 private VSNewhello vsNewhello;
}
@Model
@Getter @Setter
public static class VSNewhello{

     @Form(cssClass="oneColumn")
     private VFNewhello vfNewhello;
 }

@Model
 @Getter @Setter
 public static class VFNewhello {

        @Paragraph
        @Label(value = "Hello All!")
        private String title1;

       // Listens to an event change in the textbox
        @TextBox(postEventOnChange=true) @NotNull
        @Label("Enter your name:")
        @Rule("sample")
         private String itname;

        @TextBox @NotNull
        @Label(" You have entered:") private String otname;
}
}

Create Application.java to start up our spring boot application and LoginController.java class inside com.atlas.newhello-web → src/main/java → com.atlas.newhello (Refer 5.1→18)
Create application.yml file under com.atlas.newhello-web → src/main/resources and update pom.xml (Refer 5.1→19)

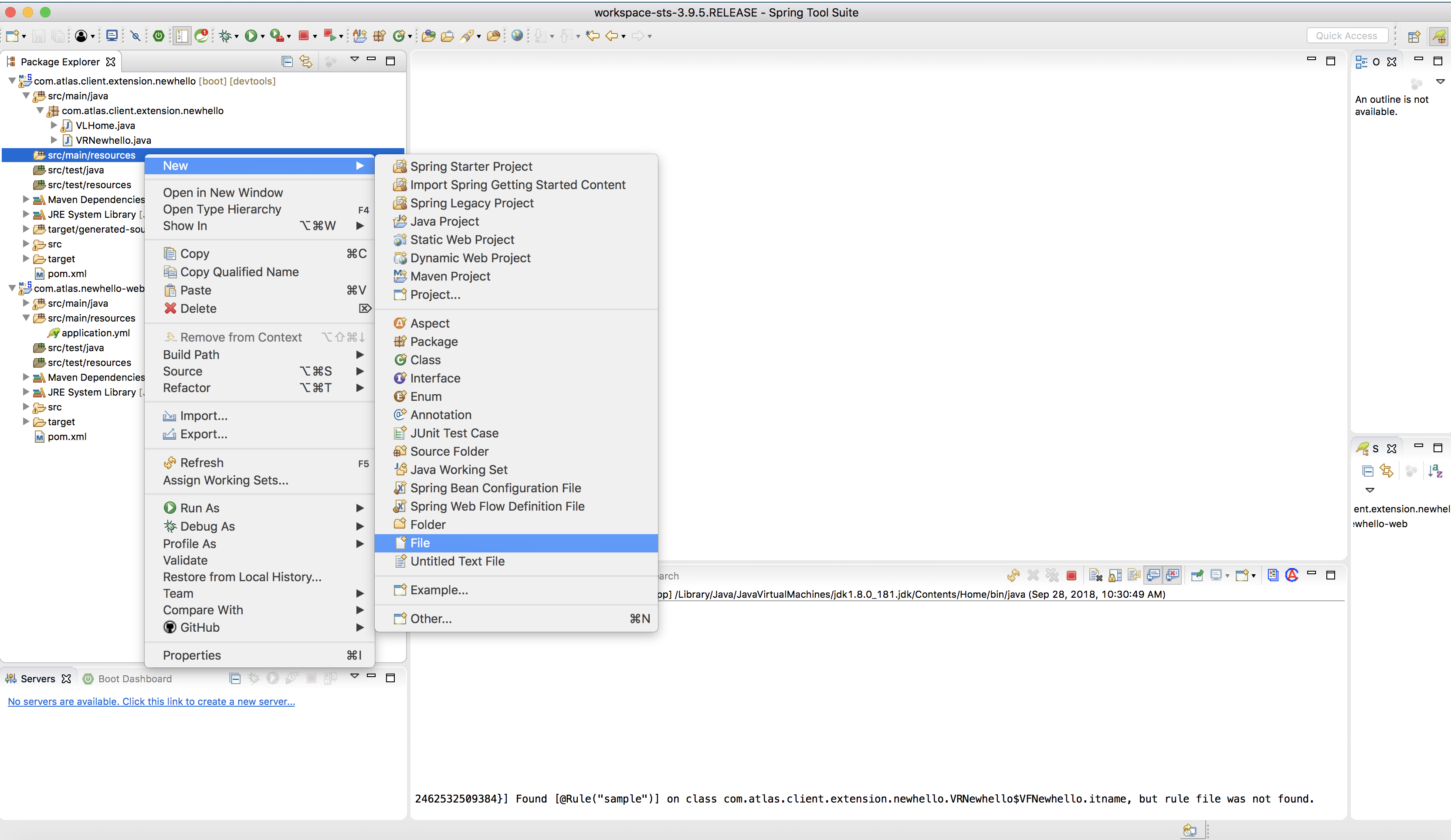

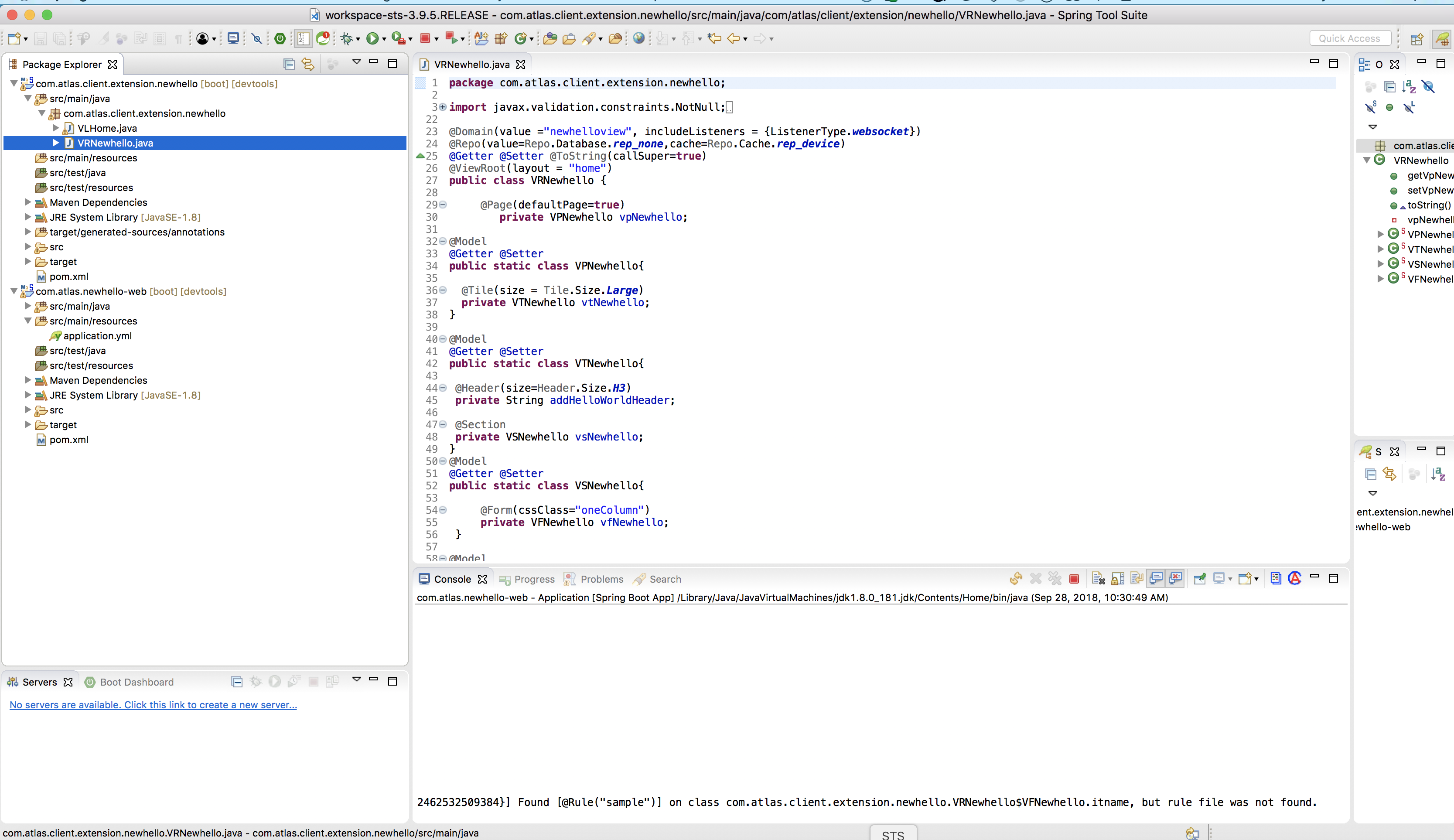

Create sample.drl inside com.atlas.client.extension.newhello → src/main/resources

sample.drl: This rules file contains details on how the state of the form variables are set through web sockets.

sample.drl

import com.antheminc.oss.nimbus.domain.model.state.internal.DefaultParamState;

rule "output"
when
$core : DefaultParamState($core.findParamByPath("/../itname").getState()!=null)
then
$core.findParamByPath("/../otname").setState($core.findParamByPath("/../itname").getState());
end

Build the project (Refer 5.1→8)

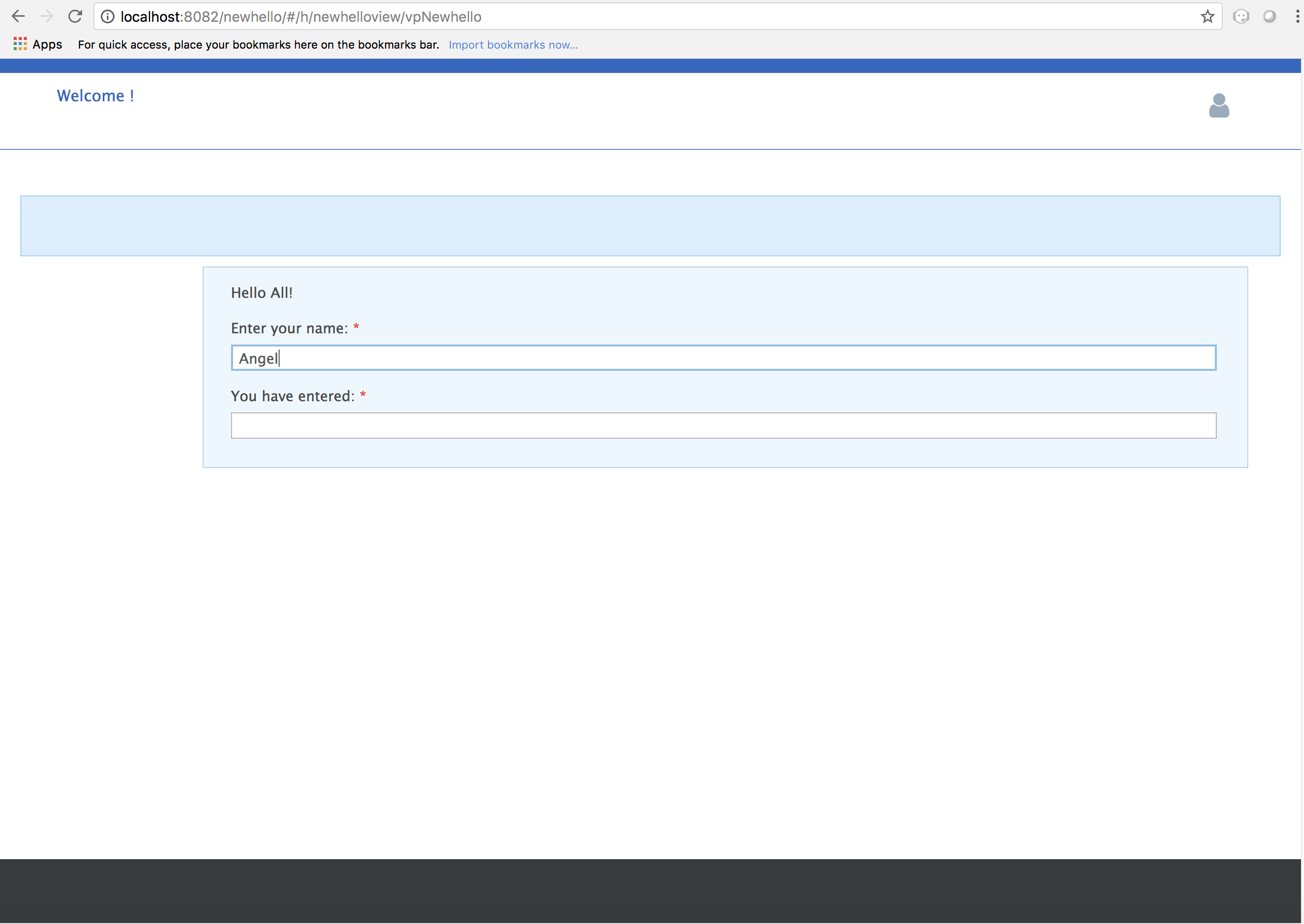

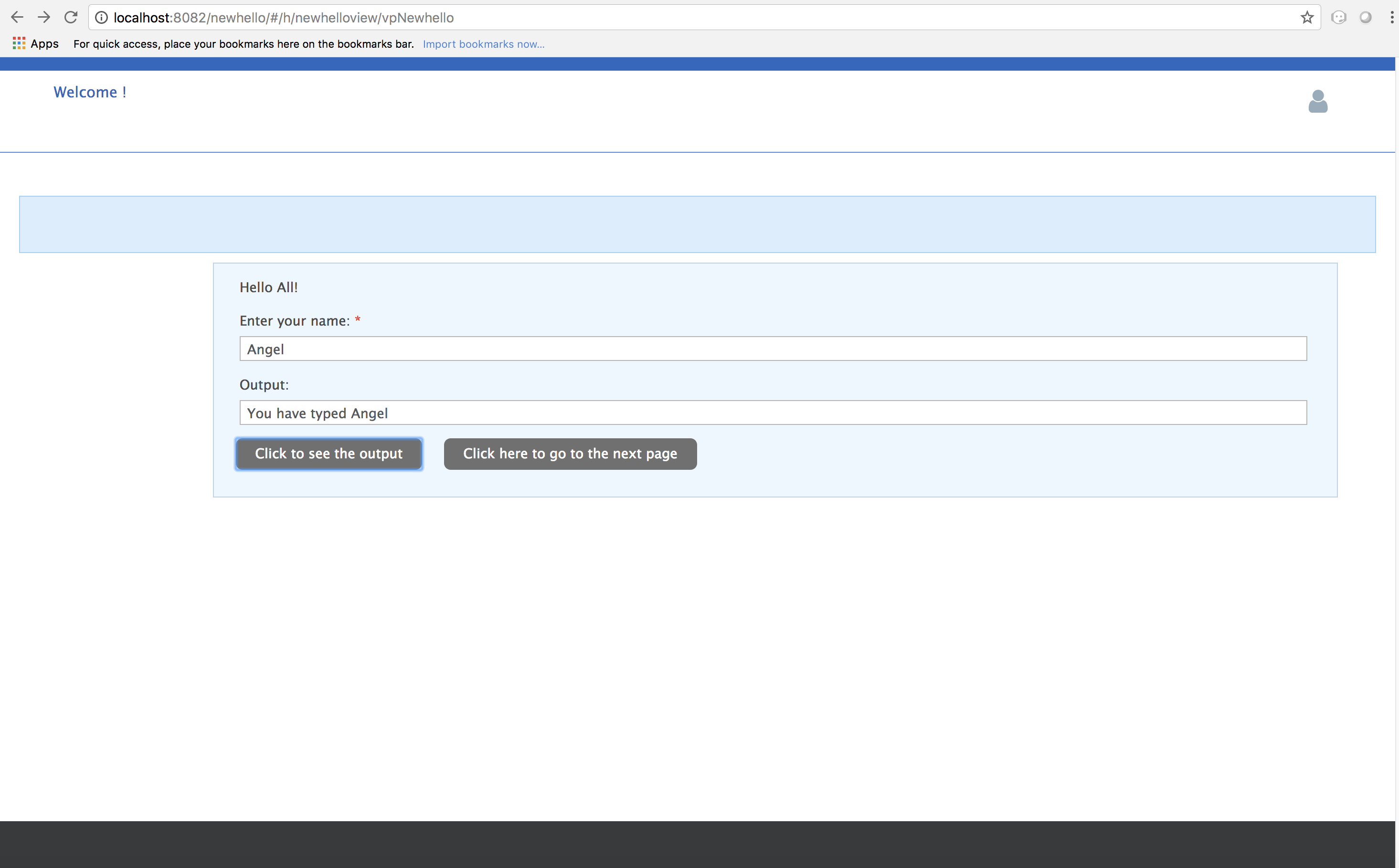

Run the application and view the output:
1. Go to http://localhost:8082/newhello/login to view your screen.
2. Enter text in the first textbox
3. Click the second textbox to see the text you have entered.

Understanding Actions: _replace

Objective

Get the value from one form element and display in another form element with the help of Config annotation(Changing the state of the variable)

Steps

Open VRNewHello.java

Update VRNewHello.java as follows:

VRNewHello.java

package com.atlas.client.extension.newhello;

import javax.validation.constraints.NotNull;
import com.antheminc.oss.nimbus.domain.defn.Domain;
import com.antheminc.oss.nimbus.domain.defn.Model;
import com.antheminc.oss.nimbus.domain.defn.Repo;
import com.antheminc.oss.nimbus.domain.defn.Domain.ListenerType;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Form;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Header;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Page;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Paragraph;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Section;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.TextBox;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Tile;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.ViewRoot;
import com.antheminc.oss.nimbus.domain.defn.extension.Content.Label;
import com.antheminc.oss.nimbus.domain.defn.extension.Rule;


import lombok.Getter;
import lombok.Setter;
import lombok.ToString;

@Domain(value ="newhelloview", includeListeners = {ListenerType.websocket})
@Repo(value=Repo.Database.rep_none,cache=Repo.Cache.rep_device)
@Getter @Setter @ToString(callSuper=true)
@ViewRoot(layout = "home")
public class VRNewhello {

     @Page(defaultPage=true)
        private VPNewhello vpNewhello;

@Model
@Getter @Setter
public static class VPNewhello{

  @Tile(size = Tile.Size.Large)
  private VTNewhello vtNewhello;
}

@Model
@Getter @Setter
public static class VTNewhello{

 @Header(size=Header.Size.H3)
 private String addHelloWorldHeader;

 @Section
 private VSNewhello vsNewhello;
}
@Model
@Getter @Setter
public static class VSNewhello{

     @Form(cssClass="oneColumn")
     private VFNewhello vfNewhello;
 }

@Model
 @Getter @Setter
 public static class VFNewhello {

        @Paragraph
        @Label(value = "Hello All!")
        private String title1;

       // Listens to an event change in the textbox
        @TextBox(postEventOnChange=true) @NotNull
        @Label("Enter your name:")
         private String itname;

        @TextBox
        @Label(" Output:") private String otname;

       /* Here we are updating the state of the variable. The action _replace
        * sets the state of the param identified by domain alias to a new state,
        * provided as a query parameter: rawPayload*/
@Config(url="/p/newhelloview/vpNewhello/vtNewhello/vsNewhello/vfNewhello/"
            + "otname/_replace?rawPayload=\"You have typed <!/../itname!>\"")
        @Button(style=Button.Style.SECONDARY)
        @Label(" Click to see the output")
        private String submit;


}
}

Build the project (Refer 5.1→8)

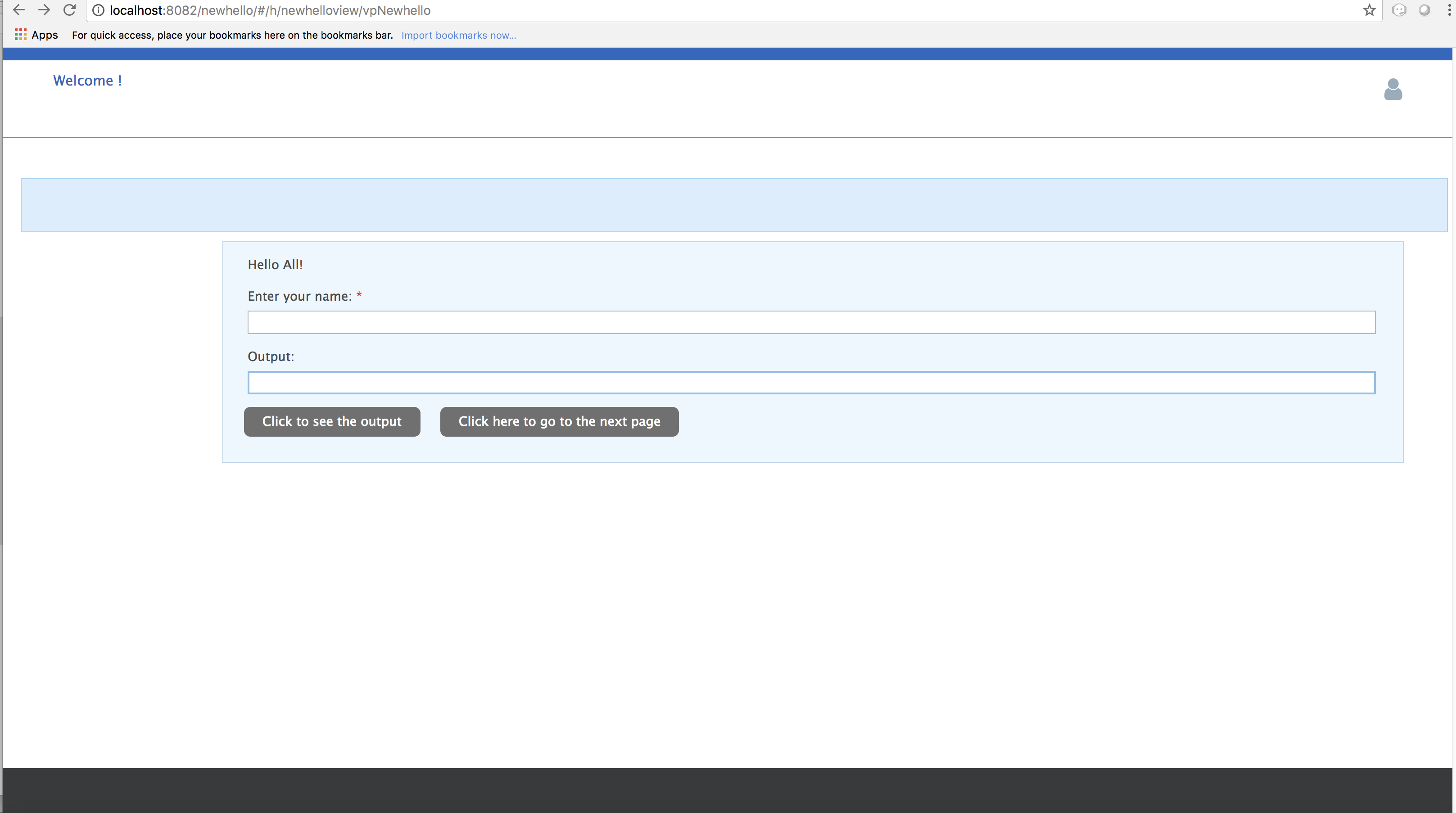

Run the application:
1. Go to http://localhost:8082/newhello/login to view your screen.
2. Enter text in the first textbox
3. Click the "Click to see the output" button to see the same text in the second textbox.

Understanding Actions: _new

Objective

Creates a new instance of the model . In this example, on click of a button, we will be redirected to a new landing page

Steps

Open VRNewHello.java

Update VRNewHello.java as follows:

VRNewHello.java

package com.atlas.client.extension.newhello;

import javax.validation.constraints.NotNull;
import com.antheminc.oss.nimbus.domain.defn.Domain;
import com.antheminc.oss.nimbus.domain.defn.Model;
import com.antheminc.oss.nimbus.domain.defn.Repo;
import com.antheminc.oss.nimbus.domain.defn.Domain.ListenerType;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Form;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Header;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Page;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Paragraph;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Section;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.TextBox;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Tile;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.ViewRoot;
import com.antheminc.oss.nimbus.domain.defn.extension.Content.Label;
import com.antheminc.oss.nimbus.domain.defn.extension.Rule;

import lombok.Getter;
import lombok.Setter;
import lombok.ToString;

@Domain(value ="newhelloview", includeListeners = {ListenerType.websocket})
@Repo(value=Repo.Database.rep_none,cache=Repo.Cache.rep_device)
@Getter @Setter @ToString(callSuper=true)
@ViewRoot(layout = "home")
public class VRNewhello {

     @Page(defaultPage=true)
        private VPNewhello vpNewhello;

@Model
@Getter @Setter
public static class VPNewhello{

  @Tile(size = Tile.Size.Large)
  private VTNewhello vtNewhello;
}

@Model
@Getter @Setter
public static class VTNewhello{

 @Header(size=Header.Size.H3)
 private String addHelloWorldHeader;

 @Section
 private VSNewhello vsNewhello;
}
@Model
@Getter @Setter
public static class VSNewhello{

     @Form(cssClass="oneColumn")
     private VFNewhello vfNewhello;
 }

@Model
 @Getter @Setter
 public static class VFNewhello {

        @Paragraph
        @Label(value = "Hello All!")
        private String title1;

       // Listens to an event change in the textbox
        @TextBox(postEventOnChange=true) @NotNull
        @Label("Enter your name:")
         private String itname;

        @TextBox
        @Label(" Output:") private String otname;

       /* Here we are updating the state of the variable. The action _replace
        * sets the state of the param identified by domain alias to a new state,
        * provided as a query parameter: rawPayload*/
@Config(url="/p/newhelloview/vpNewhello/vtNewhello/vsNewhello/vfNewhello/"
            + "otname/_replace?rawPayload=\"You have typed <!/../itname!>\"")
        @Button(style=Button.Style.SECONDARY)
        @Label(" Click to see the output")
        private String submit;

       /*Once you click the button, you will be redirected to
        * a new page defined in VRNewHelloLanding.java */
        @Config(url="/p/newhellolandingview/_new")
        @Button(style=Button.Style.SECONDARY)
        @Label(" Click here to go to the next page")
        private String submit1;
}
}

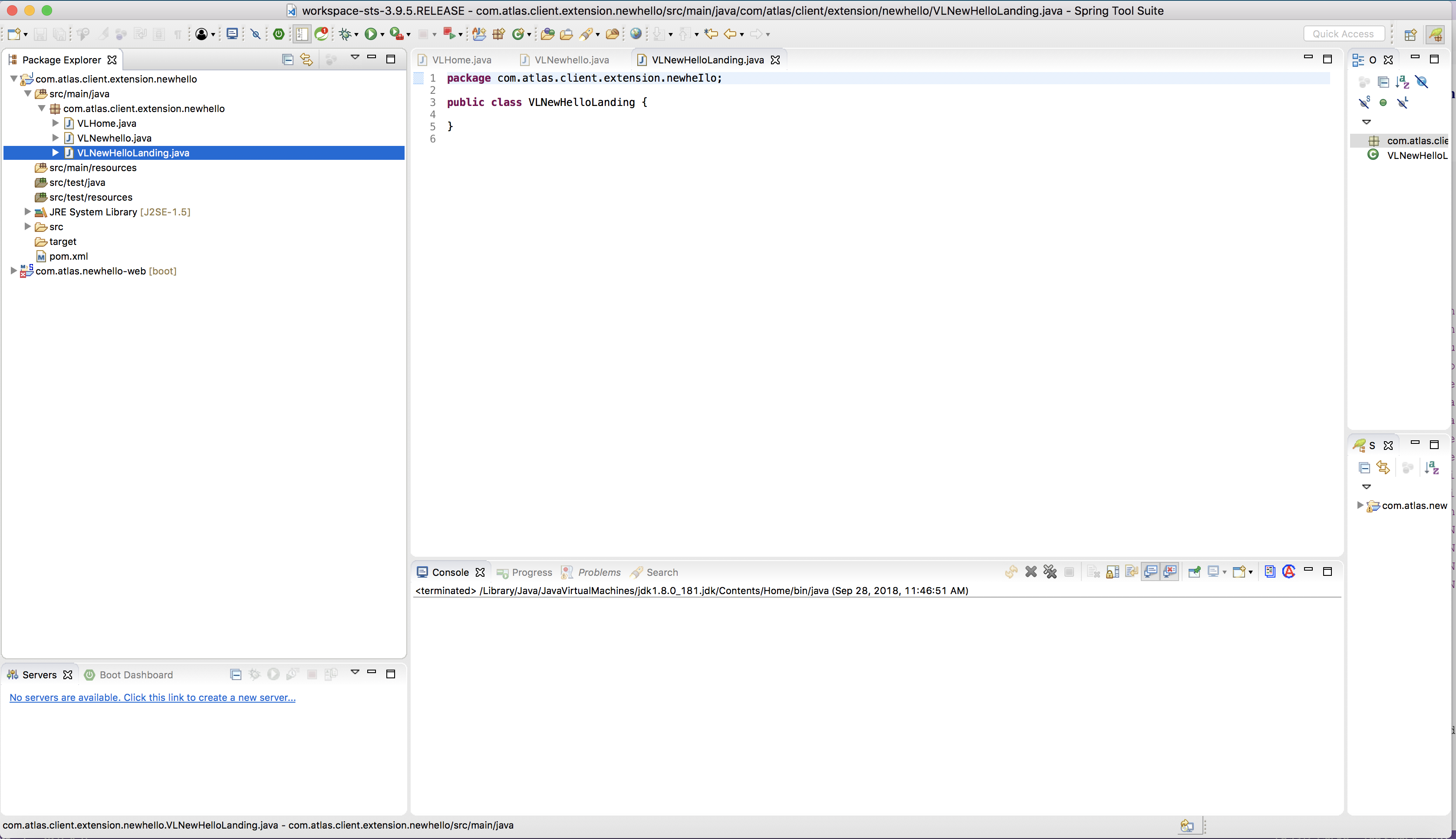

Create VRNewHelloLanding.java inside com.atlas.client.extension.newhello → src/main/java → com.atlas.client.extension.newhello

Add the following code

VRNewHelloLanding.java

package com.atlas.client.extension.newhello;

import javax.validation.constraints.NotNull;

import com.antheminc.oss.nimbus.domain.defn.Domain;
import com.antheminc.oss.nimbus.domain.defn.Model;
import com.antheminc.oss.nimbus.domain.defn.Repo;
import com.antheminc.oss.nimbus.domain.defn.Domain.ListenerType;
import com.antheminc.oss.nimbus.domain.defn.Execution.Config;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Button;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Form;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Header;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Page;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Paragraph;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Section;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.TextBox;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Tile;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.ViewRoot;
import com.antheminc.oss.nimbus.domain.defn.extension.Content.Label;
import com.atlas.client.extension.newhello.VRNewhello.VFNewhello;
import com.atlas.client.extension.newhello.VRNewhello.VPNewhello;
import com.atlas.client.extension.newhello.VRNewhello.VSNewhello;
import com.atlas.client.extension.newhello.VRNewhello.VTNewhello;

import lombok.Getter;
import lombok.Setter;
import lombok.ToString;

@Domain(value ="newhellolandingview", includeListeners = {ListenerType.websocket})
@Repo(value=Repo.Database.rep_none,cache=Repo.Cache.rep_device)
@Getter @Setter @ToString(callSuper=true)
@ViewRoot(layout = "home")

public class VRNewHelloLanding {
    @Page(defaultPage=true)
    private VPNewhelloLanding vpNewhellolanding;

@Model
@Getter @Setter
public static class VPNewhelloLanding{

@Tile(size = Tile.Size.Large)
private VTNewhelloLanding vtNewhellolanding;
}

@Model
@Getter @Setter
public static class VTNewhelloLanding{

@Header(size=Header.Size.H3)
private String addHelloWorldHeader;

@Section
private VSNewhelloLanding vsNewhellolanding;
}
@Model
@Getter @Setter
public static class VSNewhelloLanding{

 @Form(cssClass="oneColumn")
 private VFNewhelloLanding vfNewhellolanding;
}

@Model
@Getter @Setter
public static class VFNewhelloLanding {

    @Paragraph
    @Label(value = "Hello All! This is your landing page")
    private String title1;

}

}

Build the project (Refer 5.1→8)

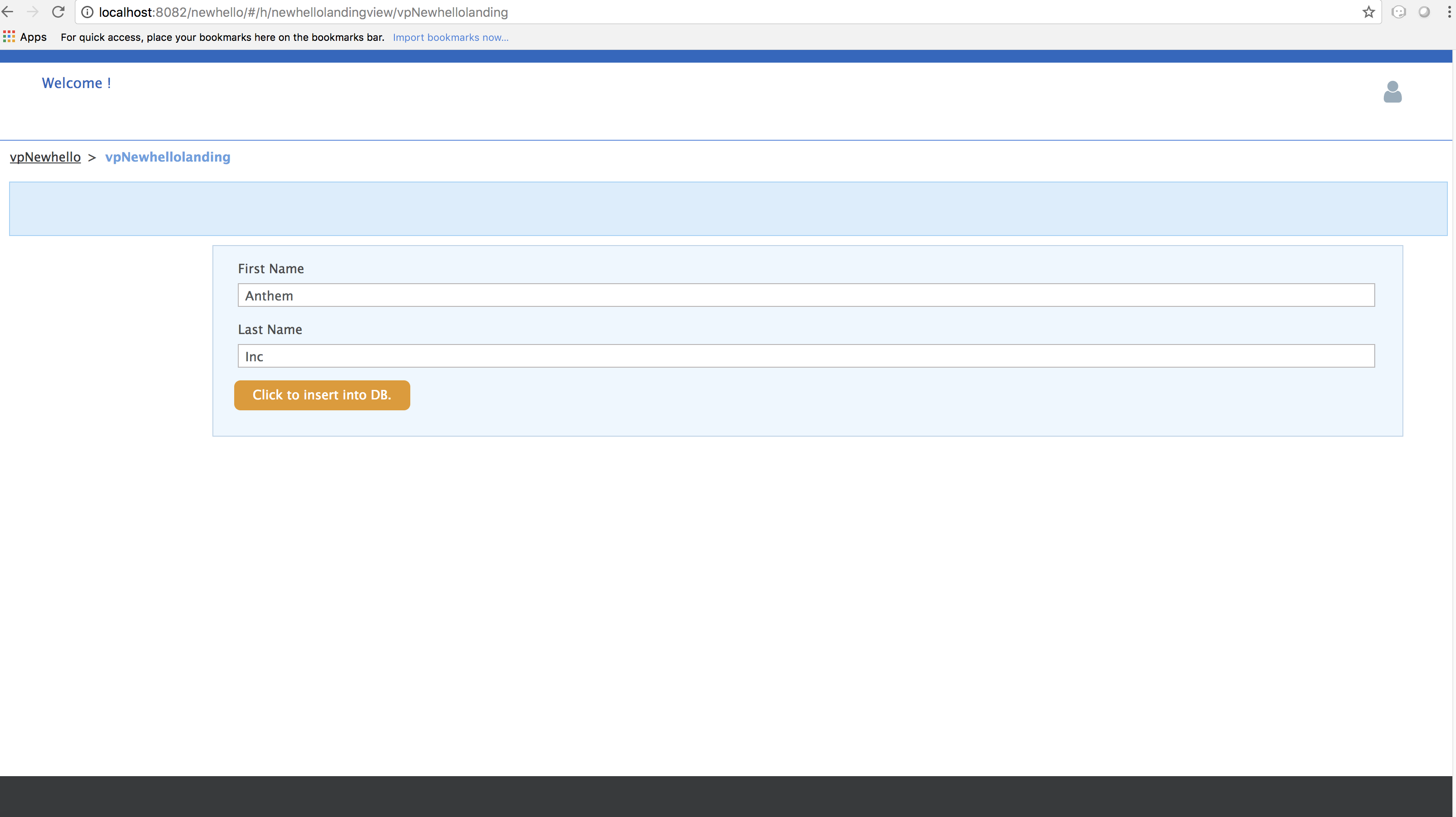

Run the application:
1. Go to http://localhost:8082/newhello/login
2. Enter text in the first textbox
3. Click the first button to see the output on the textbox

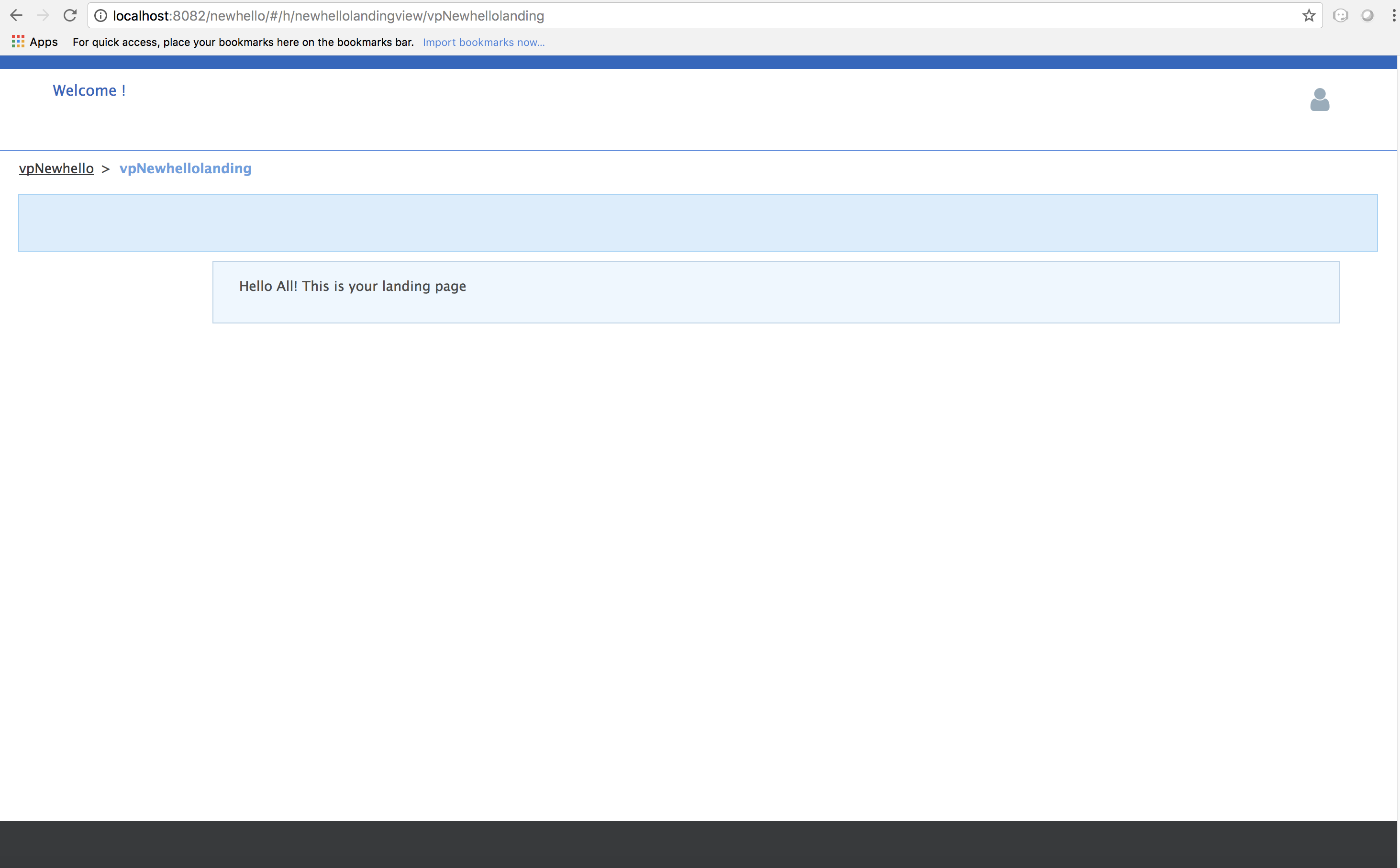

4. Click the second button "Click here to go to the next page" to land on your new page

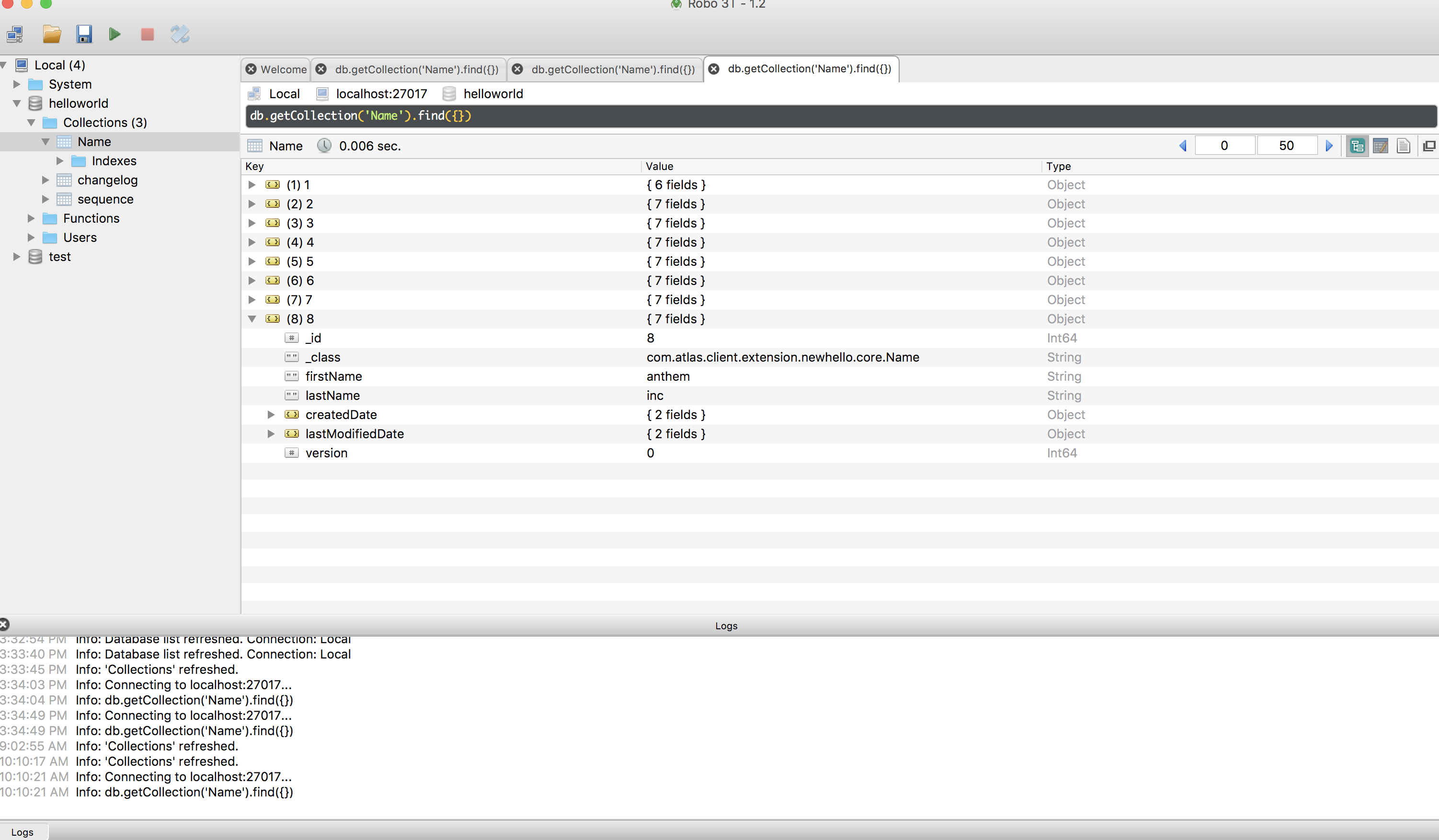

Interacting with Database using framework

Objective

To understand how the framwork interact with the database through the DB client Robo3T

Steps

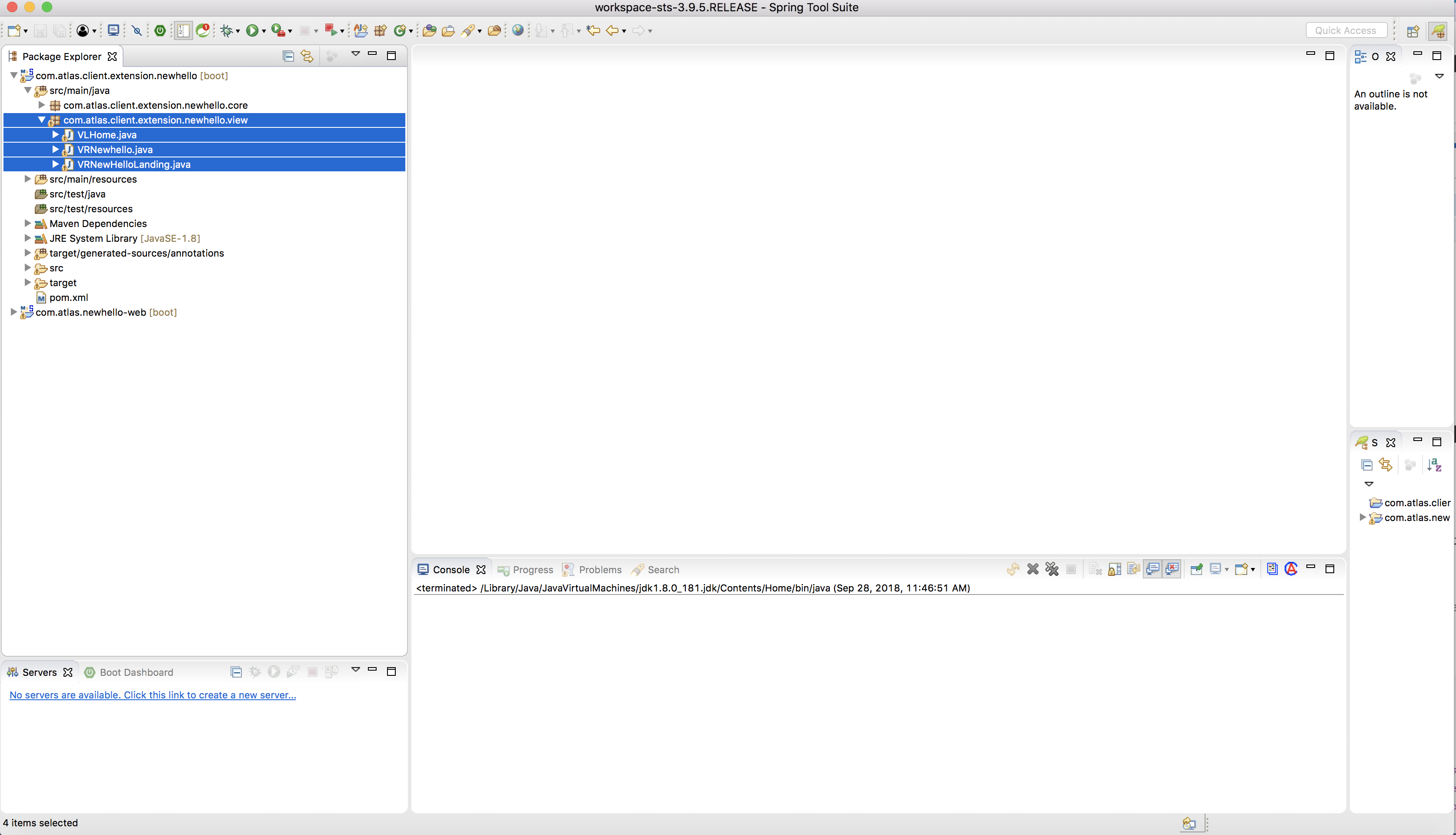

Create 2 new packages inside com.atlas.client.extension.newhello named as follows:
1. com.atlas.client.extension.newhello.core
2. com.atlas.client.extension.newhello.view
Move the previously created java files namely- VLHome.java, VLNewHello.java, VLNewHelloLanding.java inside com.atlas.client.extension.newhello.view
Create a new java class Name.java inside com.atlas.client.extension.newhello.core
Add the following code to Name.java

Name.java

package com.atlas.client.extension.newhello.core;

import com.antheminc.oss.nimbus.domain.defn.Domain;
import com.antheminc.oss.nimbus.domain.defn.Repo;
import com.antheminc.oss.nimbus.domain.defn.Domain.ListenerType;
import com.antheminc.oss.nimbus.domain.defn.Repo.Cache;
import com.antheminc.oss.nimbus.domain.defn.Repo.Database;
import com.antheminc.oss.nimbus.entity.AbstractEntity;
import lombok.Getter;
import lombok.Setter;
import lombok.ToString;

@Domain(value="Name", includeListeners={ListenerType.persistence, ListenerType.update})
@Repo(value=Database.rep_mongodb, cache=Cache.rep_device)
@Getter
@Setter
@ToString(callSuper=true)

public class Name extends AbstractEntity.IdLong{

    private static final long serialVersionUID = 1L;

    private String firstName;

    private String lastName;
}

Modify VLNewHelloLanding.java

VRNewHelloLanding.java

package com.atlas.client.extension.newhello.view;

import javax.validation.constraints.NotNull;

import com.antheminc.oss.nimbus.domain.defn.Domain;
import com.antheminc.oss.nimbus.domain.defn.Model;
import com.antheminc.oss.nimbus.domain.defn.Repo;
import com.antheminc.oss.nimbus.domain.defn.Domain.ListenerType;
import com.antheminc.oss.nimbus.domain.defn.Execution.Config;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Button;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Form;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Header;
package com.atlas.client.extension.newhello.view;

import javax.validation.constraints.NotNull;

import com.antheminc.oss.nimbus.domain.defn.Domain;
import com.antheminc.oss.nimbus.domain.defn.Model;
import com.antheminc.oss.nimbus.domain.defn.Repo;
import com.antheminc.oss.nimbus.domain.defn.Domain.ListenerType;
import com.antheminc.oss.nimbus.domain.defn.Execution.Config;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Button;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Form;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Header;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Page;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Paragraph;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Section;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.TextBox;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.Tile;
import com.antheminc.oss.nimbus.domain.defn.ViewConfig.ViewRoot;
import com.antheminc.oss.nimbus.domain.defn.extension.Content.Label;
import com.atlas.client.extension.newhello.core.Name;
import com.atlas.client.extension.newhello.view.VRNewhello.VFNewhello;
import com.atlas.client.extension.newhello.view.VRNewhello.VPNewhello;
import com.atlas.client.extension.newhello.view.VRNewhello.VSNewhello;
import com.atlas.client.extension.newhello.view.VRNewhello.VTNewhello;

import com.antheminc.oss.nimbus.domain.defn.MapsTo;
import com.antheminc.oss.nimbus.domain.defn.MapsTo.Path;
import com.antheminc.oss.nimbus.domain.defn.MapsTo.Type;

import lombok.Getter;
import lombok.Setter;
import lombok.ToString;

@Domain(value ="newhellolandingview", includeListeners = {ListenerType.websocket})
@Repo(value=Repo.Database.rep_none,cache=Repo.Cache.rep_device)
@Getter @Setter @ToString(callSuper=true)
@MapsTo.Type(Name.class)
@ViewRoot(layout = "home")

public class VRNewHelloLanding {
    @Page(defaultPage=true)
    private VPNewhelloLanding vpNewhellolanding;

@Model
@Getter @Setter
public static class VPNewhelloLanding{

@Tile(size = Tile.Size.Large)
private VTNewhelloLanding vtNewhellolanding;
}

@Model
@Getter @Setter
public static class VTNewhelloLanding{

@Header(size=Header.Size.H3)
private String addHelloWorldHeader;

@Section
private VSNewhelloLanding vsNewhellolanding;
}
@Model
@Getter @Setter
public static class VSNewhelloLanding{

 @Path(linked=false)
 @Form(cssClass="oneColumn")
 private VFNewhelloLanding vfNewhellolanding;
}

@Model
@Getter @Setter
@MapsTo.Type(Name.class)
public static class VFNewhelloLanding {



    @TextBox(postEventOnChange=true)
    @Label("First Name")
    @MapsTo.Path private String firstName;


    @TextBox (postEventOnChange=true)
    @Label("Last Name")
    @MapsTo.Path private String lastName;


  // Get the parameters from Name.java
    @Config(url = "/p/Name/_new?fn=_initEntity&target=/firstName&json=\"<!../firstName!>\"&target=/lastName&json=\"<!../lastName!>\"")
    @Button(style=Button.Style.PRIMARY, type = Button.Type.submit)
    @Label("Click to insert into DB.")
    private String clickMe;

}

}

Build the project (Refer 5.1→8)
Run the application:
1. Go to http://localhost:8082/newhello/login
2. Click "Click here to go to the next page"
3. Enter the first name and last name and click Click to insert into db
4. Go to Robo3T and expand helloworld→Name to see the data inserted

Using SSL to connect to MongoDB:

We have seen how to connect to our local database using robo 3T in our Module 1. We will see how to connect to development environment db.
Go to : https://confluence.anthem.com/display/NIM/Nimbus+Environment+Links?preview=%2F155207215%2F226468110%2Froot_chain.pem and download root_chaim.pem certificate
Create a new folder in your desktop and copy the downloaded certificate to the new folder
Open Robo 3T and click Create. Enter details as follows in the Connection tab:
```
Name: cm dm dev
Address: VA33DLVMDB304.wellpoint.com
Port : 37043
```
Click the Authentication tab. Select Perform Authentication and enter the following details:
```
Database: NICU1D
User Name: nimbusDev
Password: ArR&GX8Z
```
Click SSL tab.
- Select Use SSL Protocol check box.
- Select Authentication Method as Use CA Certificate
- Choose CA Certificate from your desktop folder (root_chain.pem)
- Click Advanced Options
- Select Allowed from the drop down against Invalid Hostname
- Click Save and then Test
Connection is established
Close the alert box . We can see that cm dm dev is in the list of connections
Click Connect

Conclusion:

Yes!!! You’re well on your way in understanding and coding on Nimbus framework!
